NPort 5100 Series User’s Manual Web Console Configuration
5-26
S Registers
No. S Register Description & default value Remarks
1 S0 Ring to auto-answer (default=0)
2 S1 Ring counter (always=0) no action applied
3 S2 Escape code character (default=43 ASCII “+”)
4 S3 Return character (default=13 ASCII)
5 S4 Line feed character (default=10 ASCII)
6 S5 Backspace character (default= 8 ASCII)
7 S6 Wait time for dial tone (always=2, unit=sec) no action applied
8 S7 Wait time for carrier (default=3, unit=sec)
9 S8 Pause time for dial delay (always=2, unit=sec) no action applied
10 S9 Carrier detect response time (always=6, unit 1/10 sec) no action applied
11 S10 Delay for hang up after carrier
(always=14, unit 1/10 sec)
no action applied
12 S11 DTMF duration and spacing (always=100 ms) no action applied
13 S12 Escape code guard time
(default=50, unit 1/50 sec)
to control the idle time for “+++”
TCP alive check time
Setting Factory Default Necessity
0 to 99 min 7 min Required
0 min: TCP connection is not closed due to an idle TCP connection.
1 to 99 min: NPort 5100 closes the TCP connection automatically if there is no TCP activity for
the given time.
Local TCP port
Setting Factory Default Necessity
1 to 65535 4001 Required
The TCP port that other devices must use to contact this device. To avoid conflicts with standard TCP
ports, the default is set to 4001.

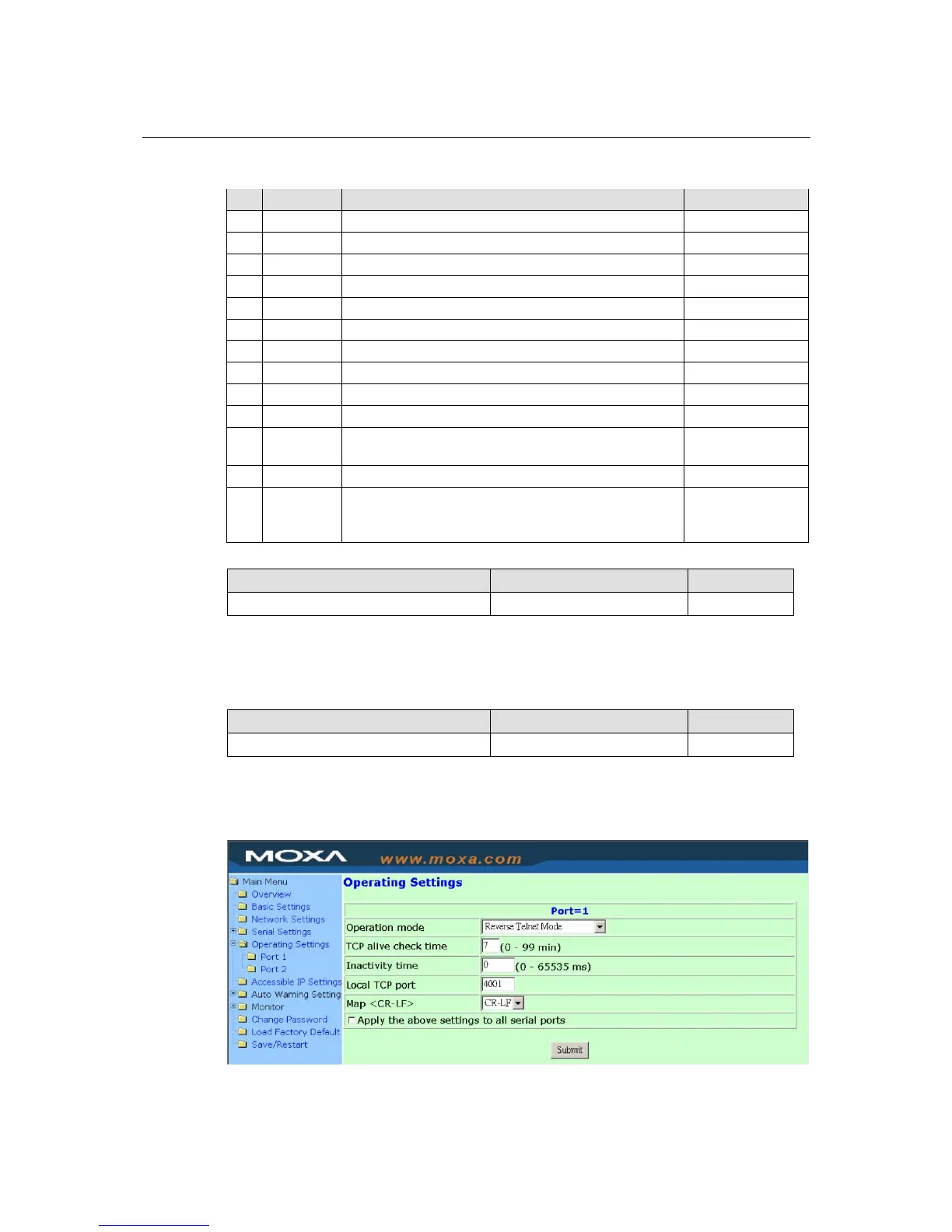

Reverse Telnet Mode
