NPort 5100 Series User’s Manual Web Console Configuration
5-9
Stop bits
Setting Factory Default Necessity
1, 1.5, 2 1 Required
Stop bits will be set to 1.5 when Data bits is set to 5 bits.
Parity
Setting Factory Default Necessity
None, Even, Odd, Space, Mark None Required
Flow control
Setting Factory Default Necessity
None, RTS/CTS, DTR/DSR, Xon/Xoff RTS/CTS Required
FIFO
Setting Factory Default Necessity
Enable, Disable Enable Required
NPort 5100’s serial ports provide a 16-byte FIFO both in the Tx and Rx directions. To prevent
data loss during communication, disable the FIFO setting when your serial device does not have a
FIFO.
Interface
Setting Factory Default Necessity
RS-232/422/485 only RS-232/422/485 only Required

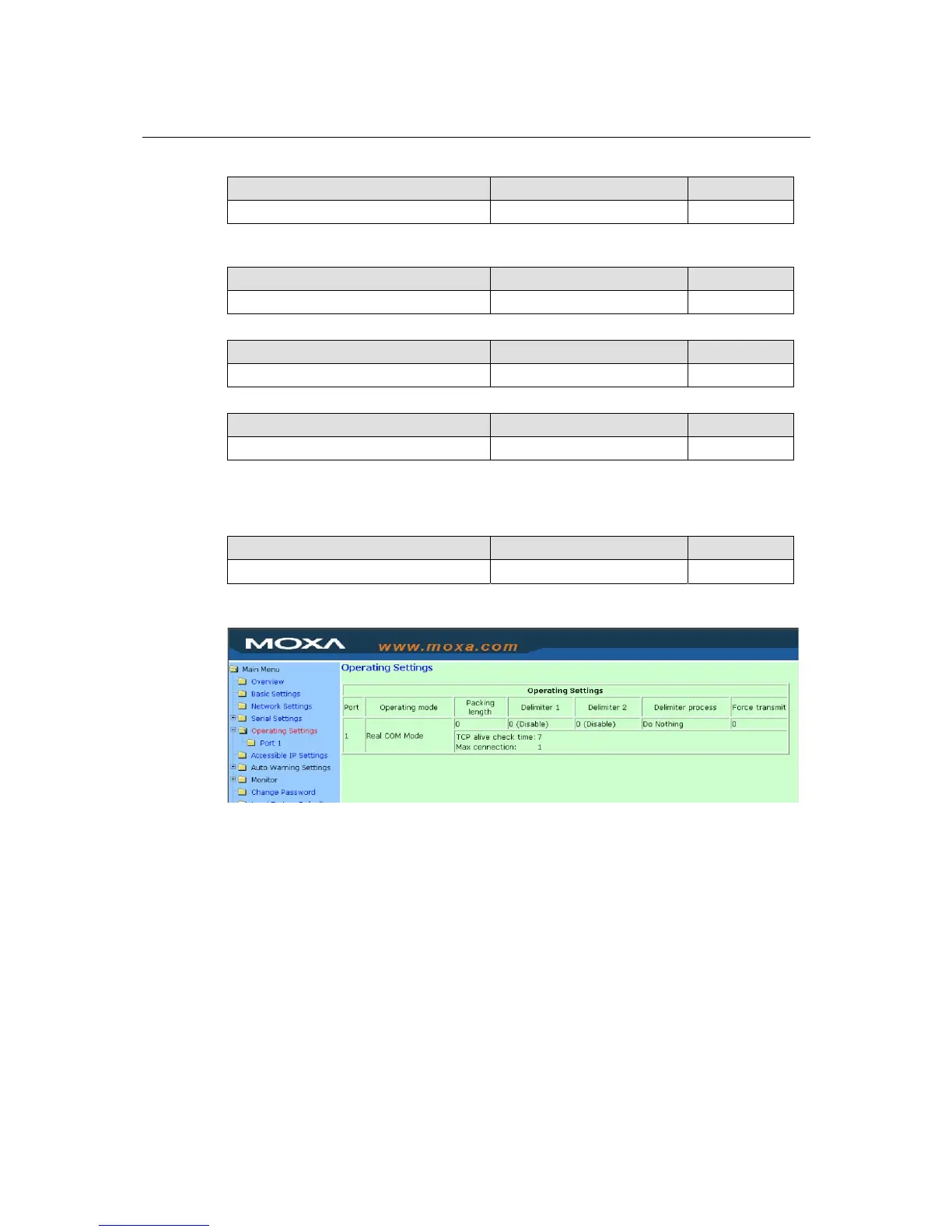

Operating Settings
Click Operating Settings, located under Main Menu, to display the operating settings for both of
NPort 5100’s serial ports.
