NPort 5100 Series User’s Manual Pinouts and Cable Wiring
A-3

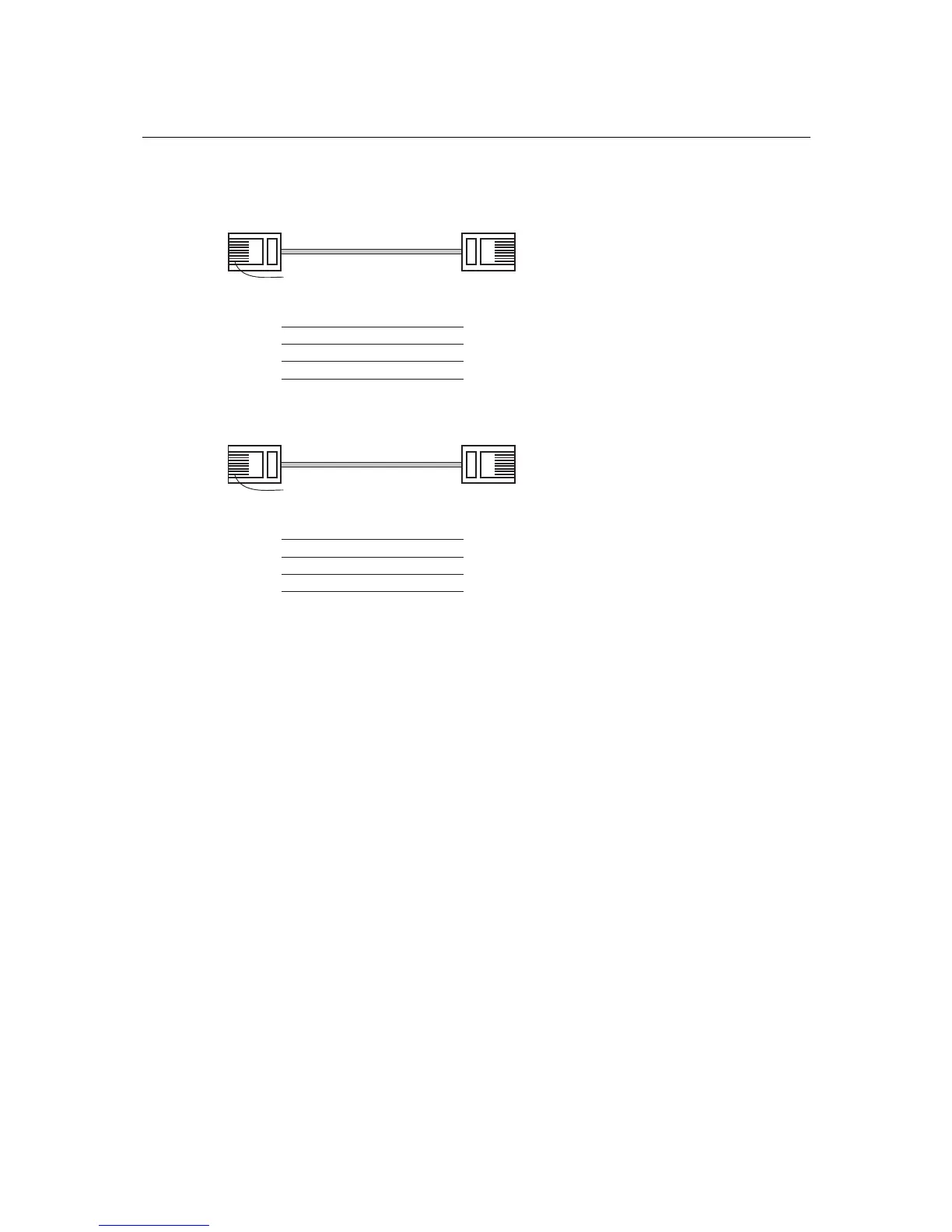

Cable Wiring Diagrams
Ethernet Cables
Straight-Through Cable
RJ45 Plug Pin 1
Cable Wiring
3 3
6 6
1 1
2 2
Cross-Over Cable
RJ45 Plug Pin 1
Cable Wiring
3 1
6 2
1 3
2 6
