NPort 5100 Series User’s Manual Initial IP Address Configuration
3-7
7. NPort 5100 will receive the “ ` ” string continuously and then auto switch from data mode to
console mode.

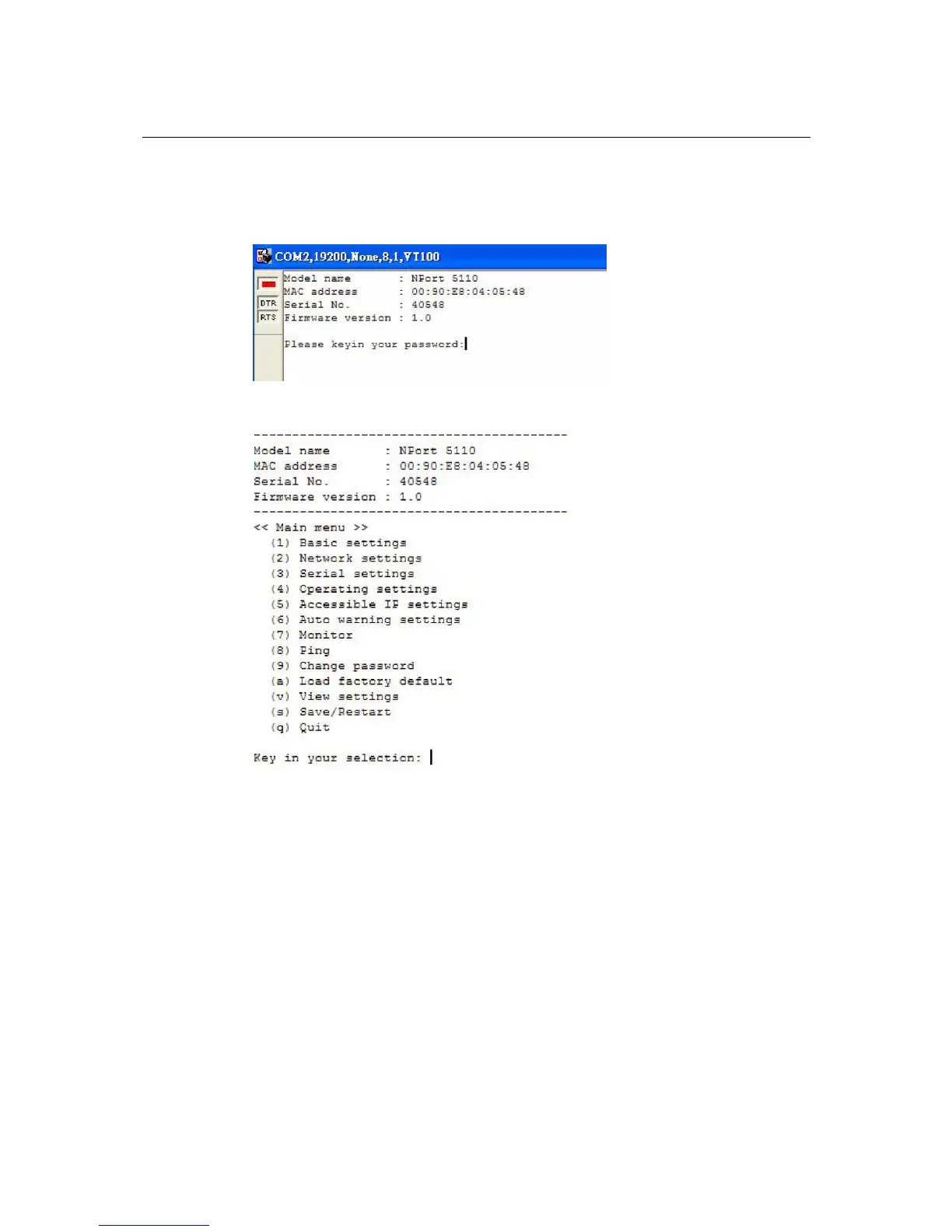

8. Input the password when prompted. Note that this page will only appear when the NPort 5100
has been set up for password protection.
9. Start configuring the IP address under Network Settings. Refer to step 4 in the Telnet
Console section for the rest of the IP settings.
