NPort 5100 Series User’s Manual Configuring NPort Administrator
6-7

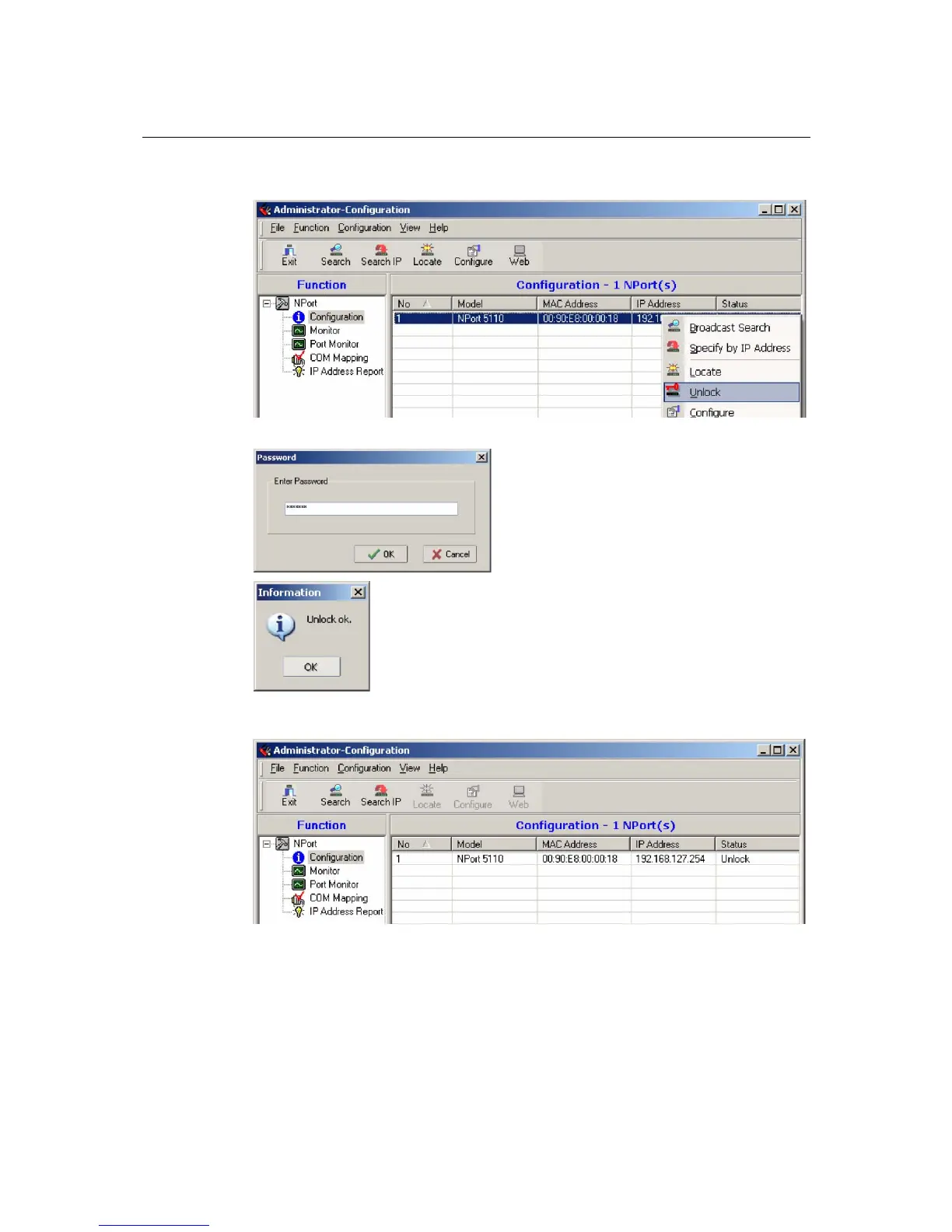

1. Select the NPort 5100 with “Lock” status, click the right mouse button, and then select
Unlock.
2. After inputting the correct password, the Administrator will display an “Unlock ok” message.
3. The “Lock” status will change to “Unlock,” and the Administrator utility will keep this NPort
5100 in the Unlock status throughout this Administrator session.
The meanings of the six “Status” states are given below (note that the term Fixed is borrowed
from the standard fixed IP address networking terminology):
Lock
The NPort 5100 is password protected, “Broadcast Search” was used to locate it, and the
password has not yet been entered from within the current Administrator session.
