5 Mounting
47BA6820378-03 EN
5.4.4 Aligning the device
Aligning the device:
► Align the device as desired using the double screw connection after
mounting.

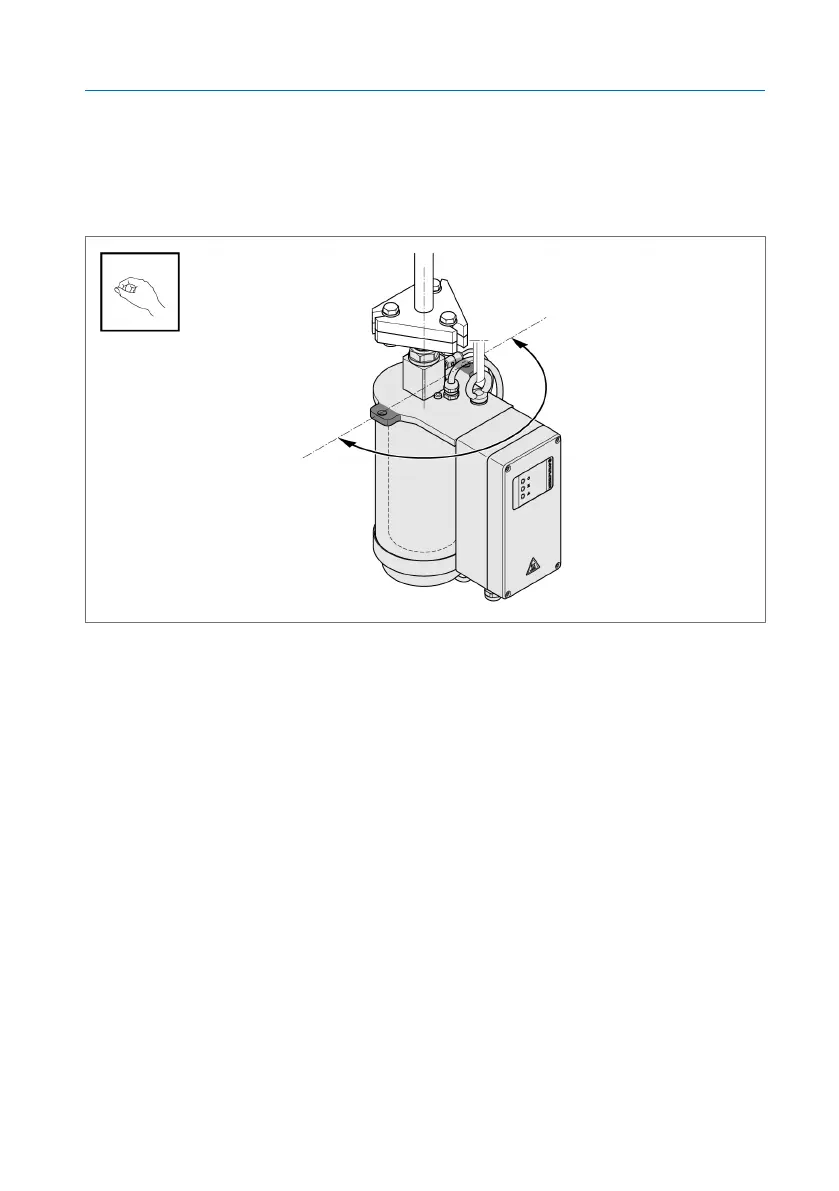

Figure28: Alignment of dehydrating breather
5.4.5 Tightening the double screw connection
Tightening the double screw connection on the DB100 / DB200:
1. Hold the nut on the upper air spout and tighten the locknut on the flange
with 250 Nm.
2. Make sure that the lower nut is not loosened from the device during as-
sembly.
3. Wait 5 minutes.
4. Tighten the upper nut again with 250 Nm.
or
Tightening the double screw connection on the DB200D / DB200G:
1. Hold the screw connection on the upper air spout and tighten the locknut
on the flange with 250 Nm.
2. Make sure that the lower screw connection is not loosened from the de-
vice during assembly.
3. Wait 5 minutes.
