MR MESSKO MTRAB - Closing the Terminal Box

6 Electrical connection
71BA6820378-03 EN
Changing the Modbus address of the device
The Modbus address of the device is set to 3 (ADR switch position 3) as
standard. In this setting, the transmission speed is 19,200baud and the par-
ity is "EVEN". The Modbus address of the device can be changed via the
"ADR" switch (see RS485 communication settings [►Section 14.2, Page
120]).
6.10 Closing the terminal box
In order to close the terminal box again, proceed as follows:
► Check the grounding cable in the terminal box.

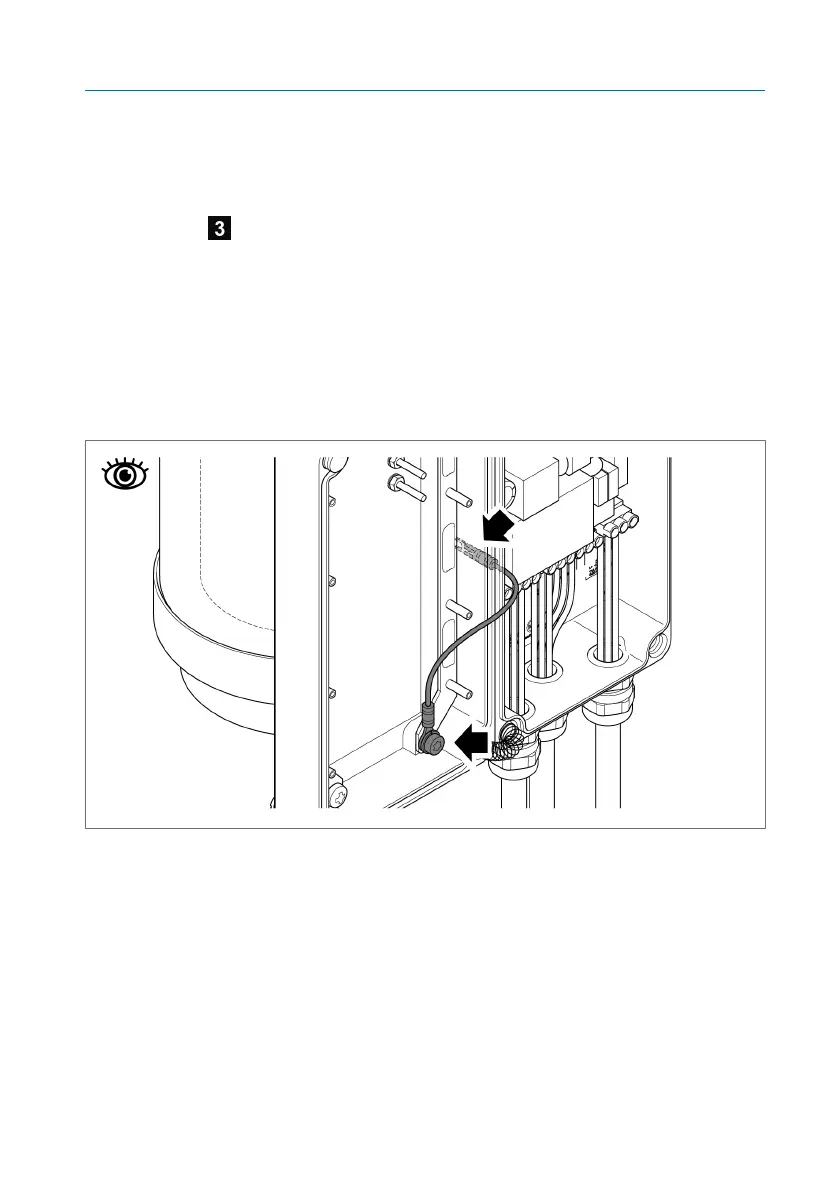

Figure50: Terminal box grounding cable
