6.5 Connecting the supply voltage
In order to connect the cable for the supply voltage, proceed as follows:
1. Insert the wire for the protective conductor into terminal 1 (PE) and tighten
the screw terminal.
2. Insert the wire for the phase/plus into terminal 2 (L+) and tighten the
screw terminal.
3. Insert the wire for the neutral conductor/minus into terminal 3 (N-) and
tighten the screw terminal.

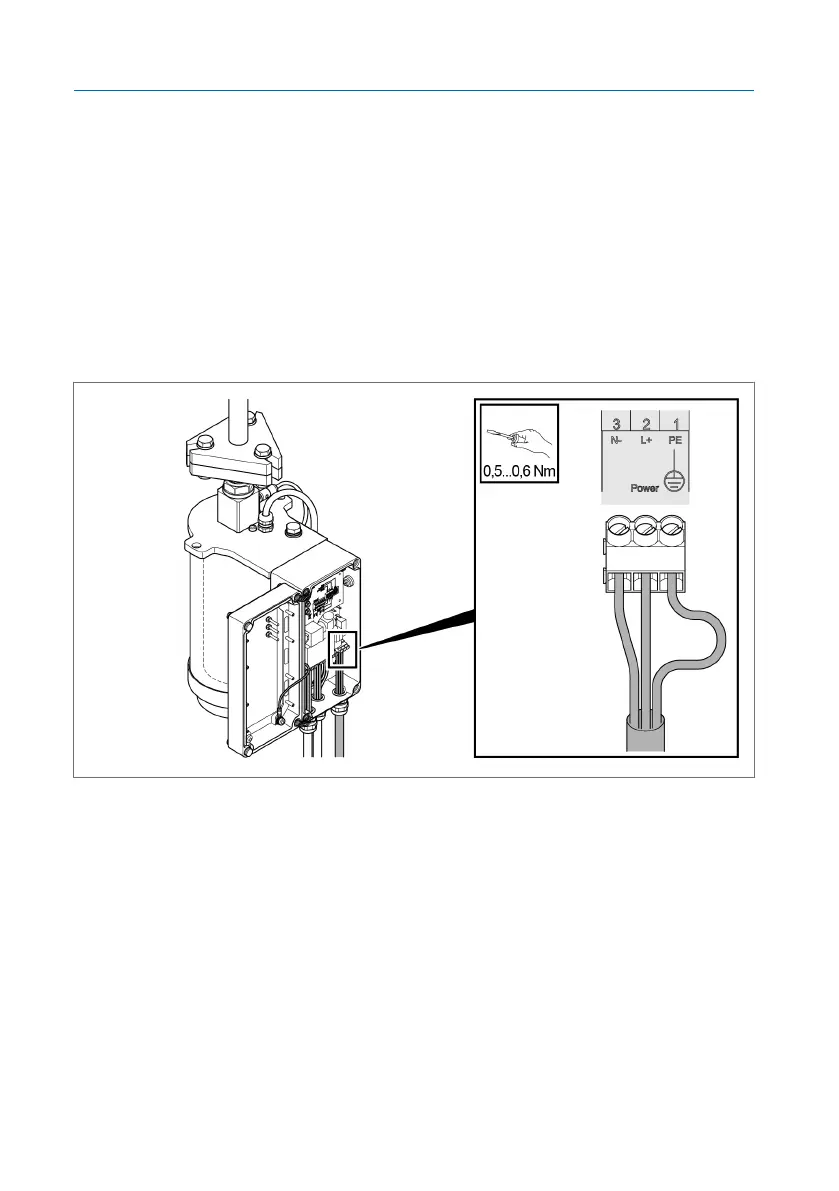

Figure38: Connecting the supply voltage
