MR MESSKO MTRAB - 2-Conductor Half Duplex

6 Electrical connection
65BA6820378-03 EN
6.9.2 2-conductor half duplex

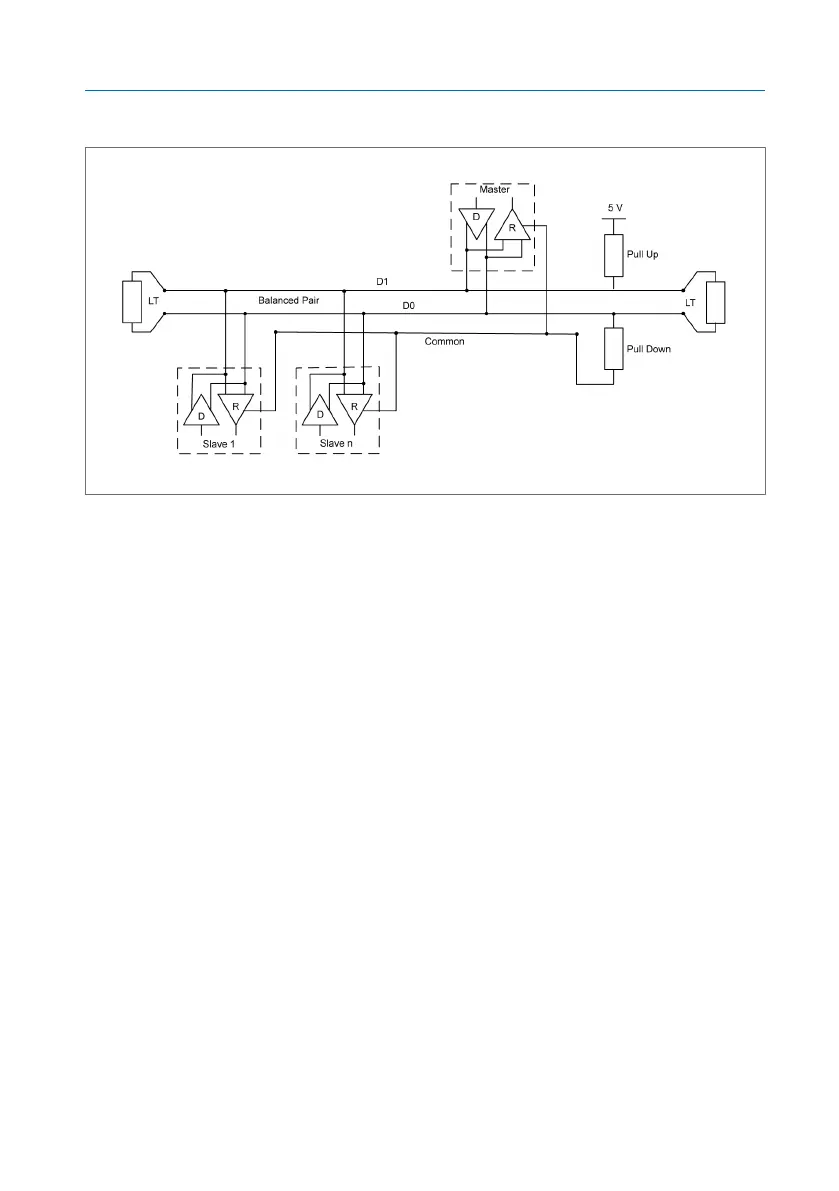

Figure44: 2-conductor system
To connect the cables for integration into a 2-conductor system, proceed as
follows:
1. Insert the wire for D+ into screw terminal "1 D+" and tighten.
2. Insert the wire for D- into screw terminal "1 D-" and tighten.
3. Insert the wire for the ground potential into screw terminal "Comm" and
tighten.
