6 Electrical connection
64 BA6820378-03 EN
To connect the cables for integration into a 4-conductor system, proceed as
follows:
1. Insert the wire for Rx+ into screw terminal "1 Rx+" and tighten.
2. Insert the wire for Rx- into screw terminal "1 Rx-" and tighten.
3. Insert the wire for Tx- into screw terminal "2 Tx-" and tighten.
4. Insert the wire for Tx+ into screw terminal "2 Tx+" and tighten.
5. Insert the wire for the ground potential into screw terminal "Comm" and
tighten.
6. Twist the shielding, insert it into the "Shield" terminal and tighten.

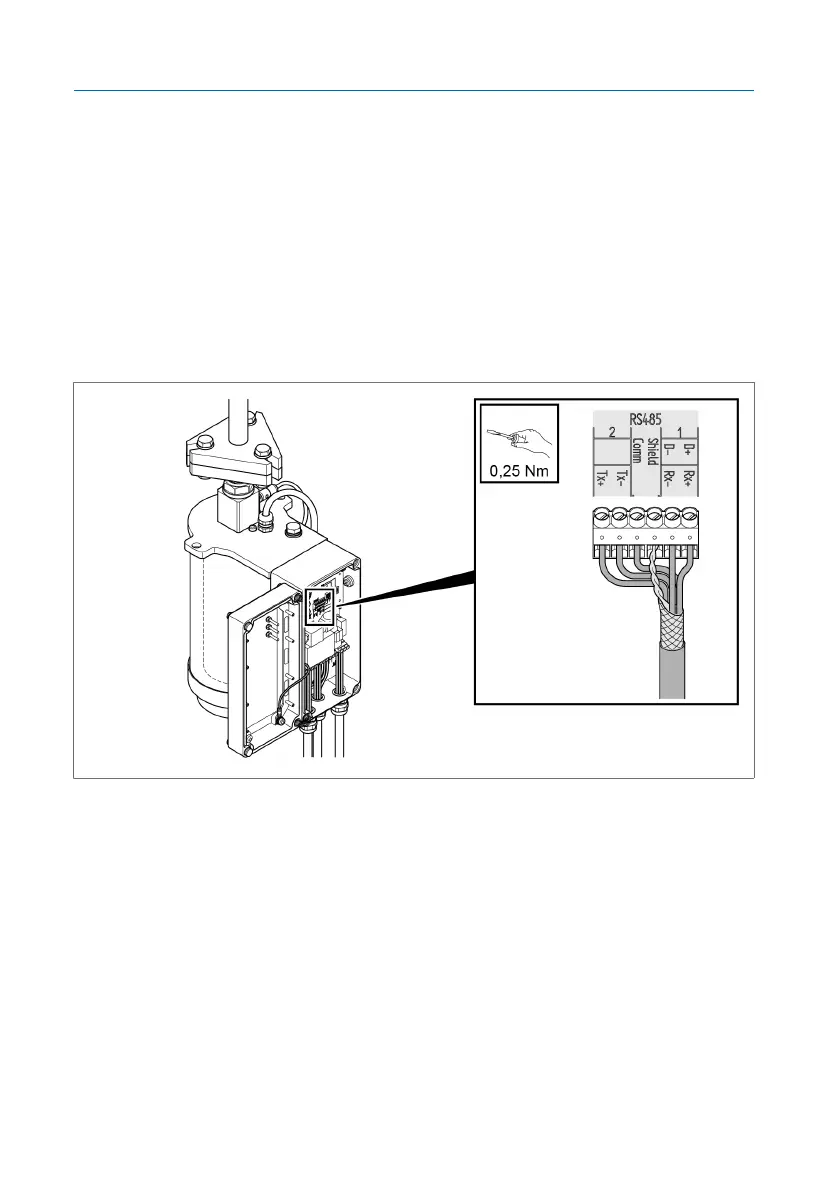

Figure43: Connecting the full-duplex cable
