MR MESSKO MTRAB - Messko Mtrab 2.5

6 Electrical connection
68 BA6820378-03 EN
6.9.4 MESSKO® MTRAB® 2.5
If you would like to use a MESSKO® MTRAB® 2.5 sensor, you must con-
nect the sensor to the RS485 plug terminals on the sensor bus.
CPU-COM2
MTRAB 2.5
D0 (A)
D1 (B)
Com. (C)
1
2
3
4
5
6
7
8
9
D+ | Rx+
D- | Rx-
Comm
Tx-
Tx+
Shield

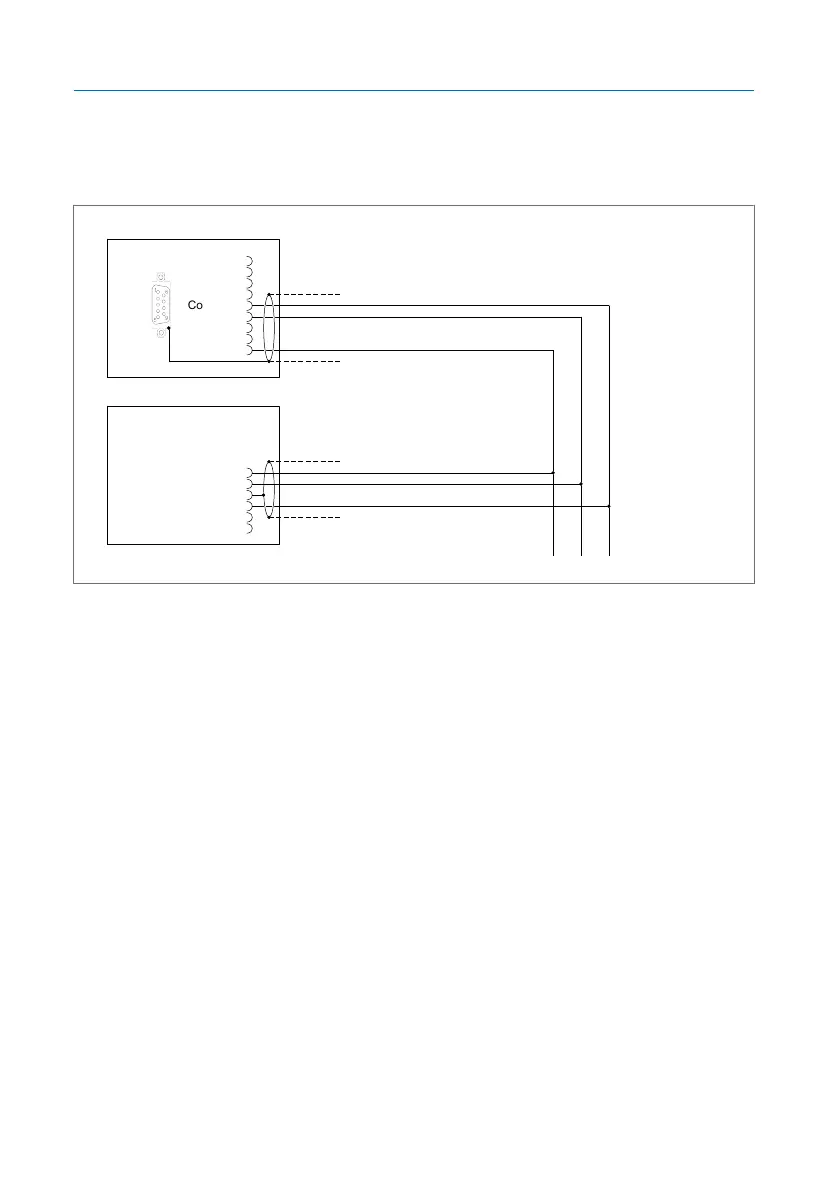

Figure47: Connection example MESSKO® MTRAB® 2.5 (terminal RS485)
