MR MESSKO MTRAB - Connecting the Device Error Signaling Relay

6 Electrical connection
60 BA6820378-03 EN
6.7 Connecting the device error signaling relay
WARNING
Electric shock!
The regeneration and device error signaling contacts may both
be operated either with safety extra-low voltage (SELV) or with
low voltage. For electrical safety reasons, mixed operation
with both SELV and low voltage is not permitted.
In order to connect the cable for transmitting the device error signal (NC con-
tact, failsafe), proceed as follows:
1. Insert the wires into terminals 7 and 8 (NO contact) or 8 and 9 (NC con-
tact).
2. Tighten the screw terminals.

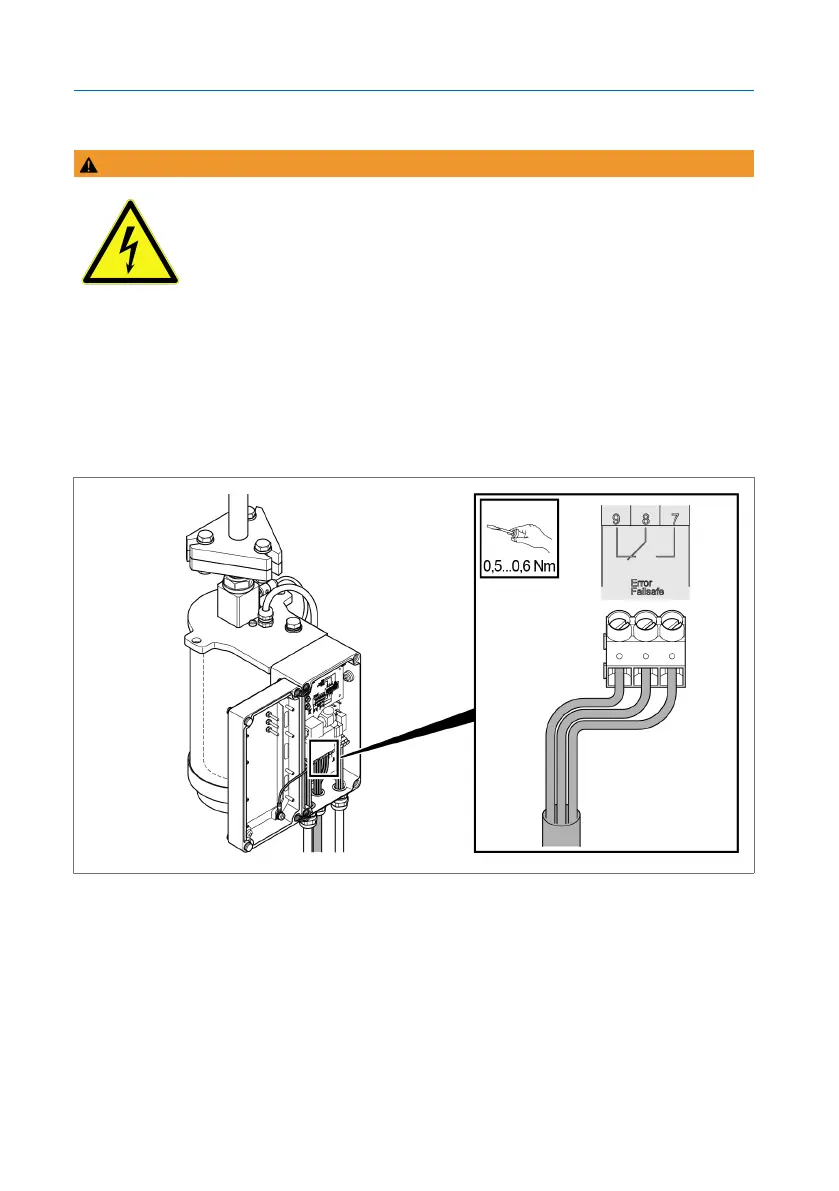

Figure40: Device error signal cable
