9 Error messages and troubleshooting
89BA6820378-03 EN
2. Open the terminal box of the dehydrating breather (see [►Section 6.4,
Page 54]). To do so, unscrew the 4 captive screws on the housing cover.
Open the cover of the terminal box.

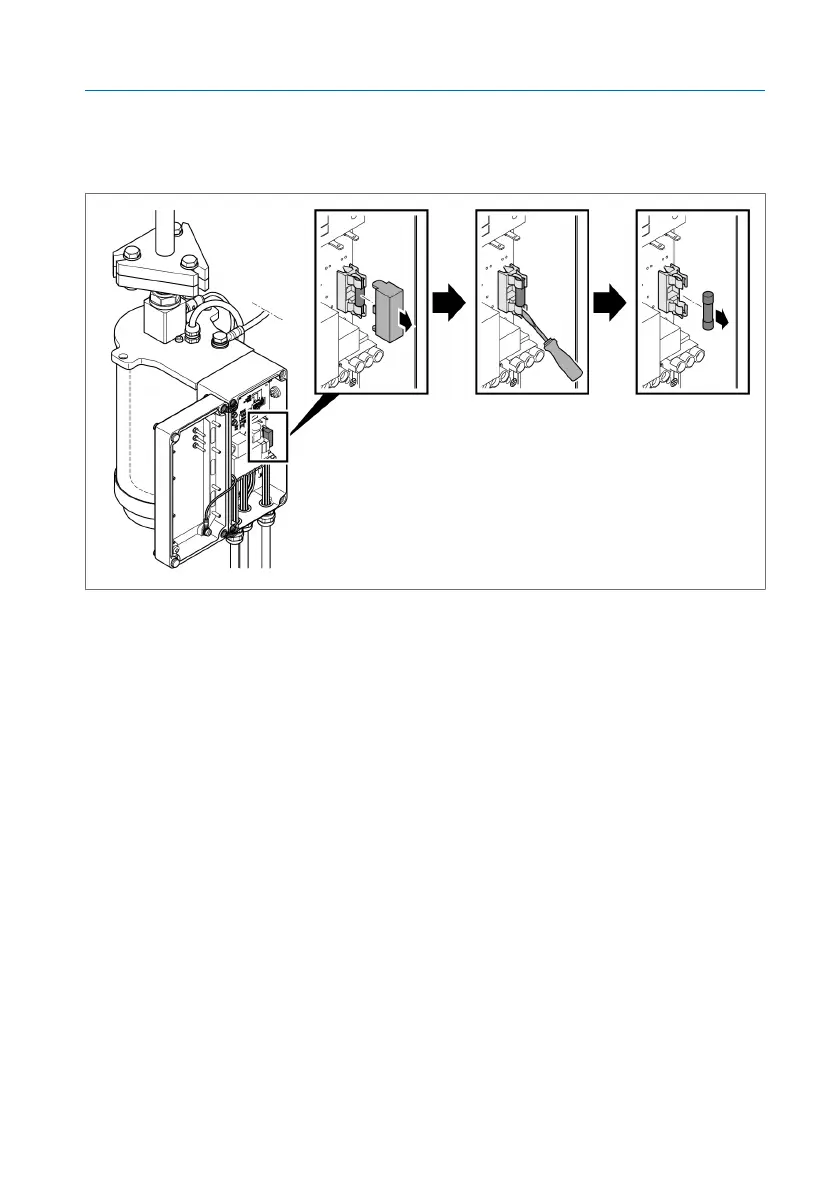

Figure65: Removing the fine-wire fuse
3. Remove the safety cover.
4. Using a screwdriver, carefully move under one end of the fuse and lift it
out of the holder.
5. Remove the fuse.
6. Position the new fuse (5x20mm; T2A; 400VDC/500VAC) with both
ends on the holder and carefully press down until it snaps in place.
