(2) Disassembly Medium Pressure Line
 With the protective cap disassembled, pull the silver coloured clamp
(U-clip) out of the housing.

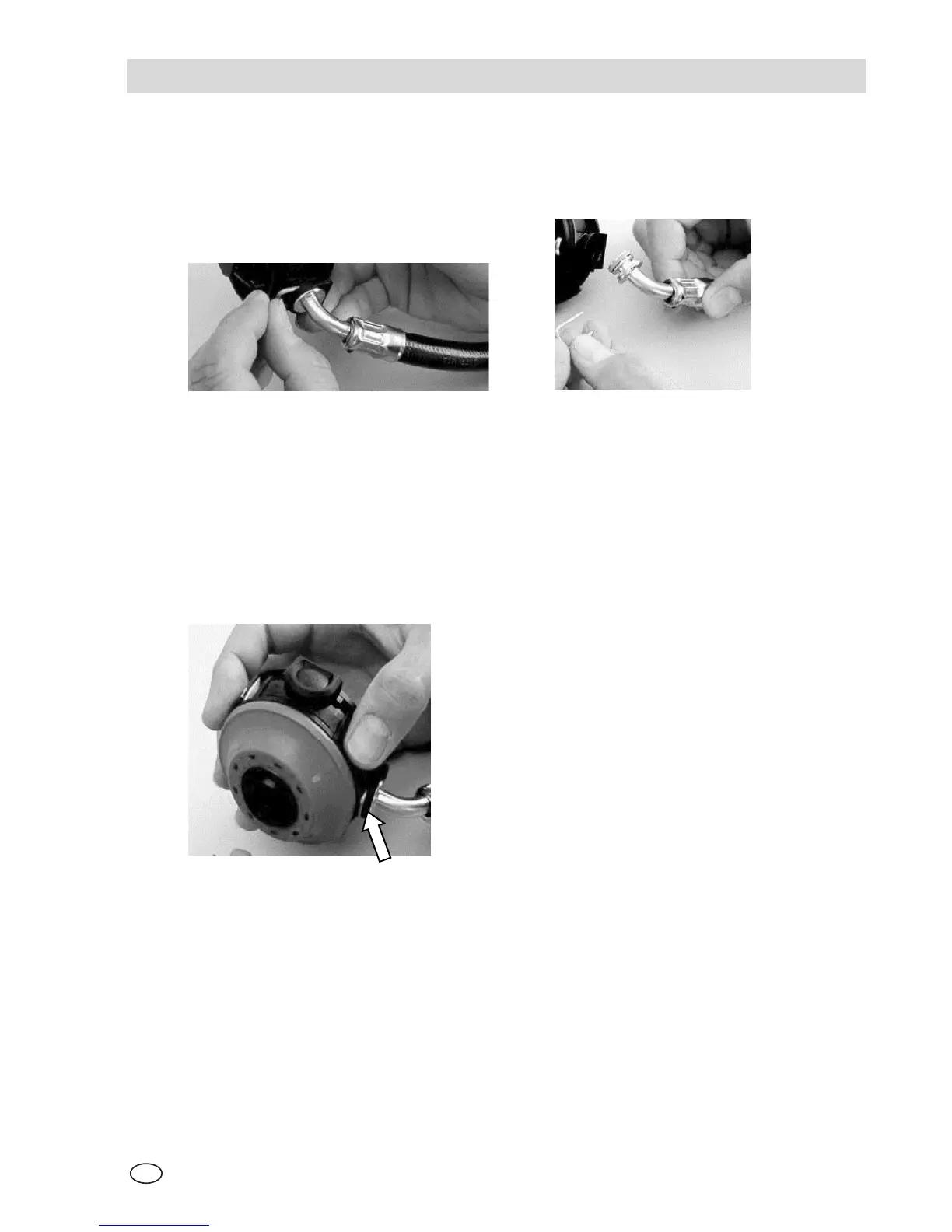

Fig. 30 Disassembly medium pressure line
 Pull medium pressure line out of the housing.
(3) Assembly Medium Pressure Line
 Check O-ring on bend for visible damage and replace if required
 Push medium pressure line into housing till stop
 Push U-clip from the diaphragm side ( arrow in Fig. 31) into holes of
housing till stops. The medium pressure line is secured.
Fig. 31 Assembly medium pressure line
