2-6
SOSTENER (3 s)
PULSAR
SOSTENER (3 s)
SOSTENER (3 s)
SOSTENER (3 s)
SOSTENER (3 s)
ESPERAR (99 s)
PULSAR
PULSAR O PULSAR
Y SOSTENER
PULSAR
ESPERAR (3 s)
ESPERAR (3 s)
INCREMENTAR
VALOR

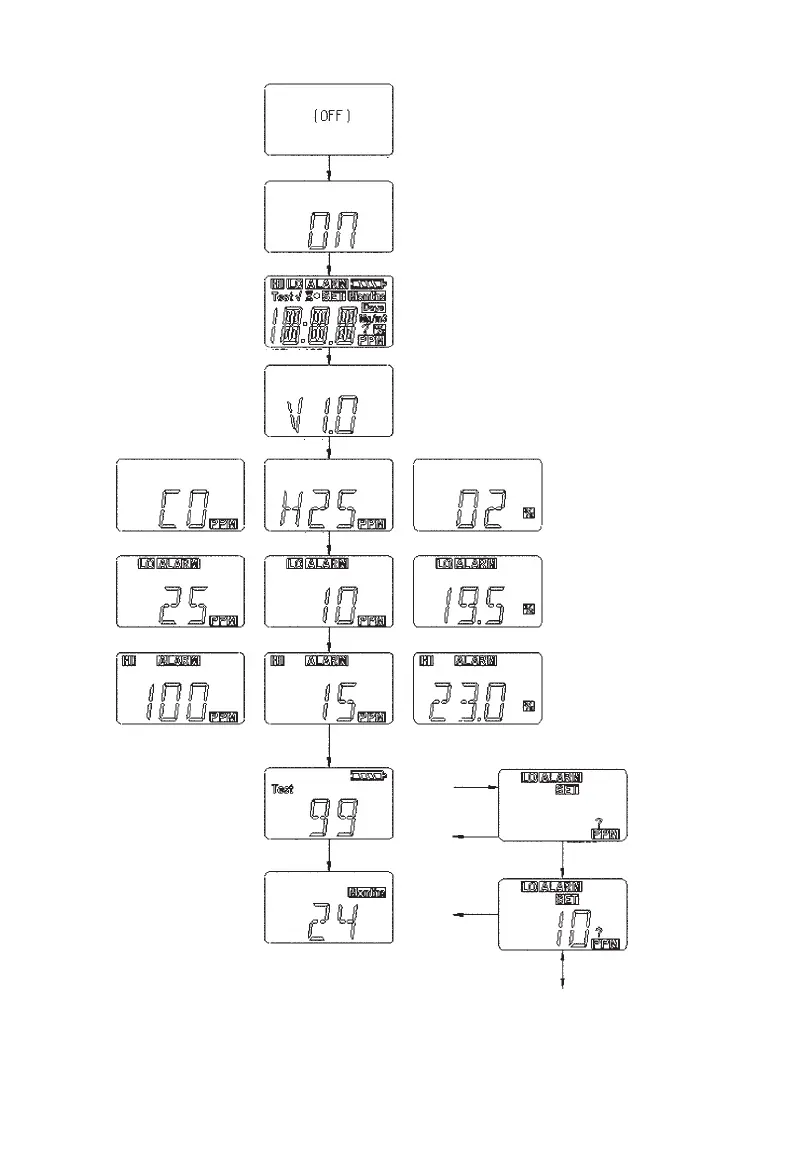

Figura 2-4. Diagrama de flujo de activación del Altair
ACTIVAR LED/BOCINA/VIBRADOR
