2.3.2 Input Devices Compatibility
Analog Inputs
The SENTRY io is designed to provide 24 VDC field device power for connected, 2 and 3-wire 4-20 mA signal fixed gas
detectors. The wiring termination blocks for connected gas detectors are located in the lower left hand corner of the panel.

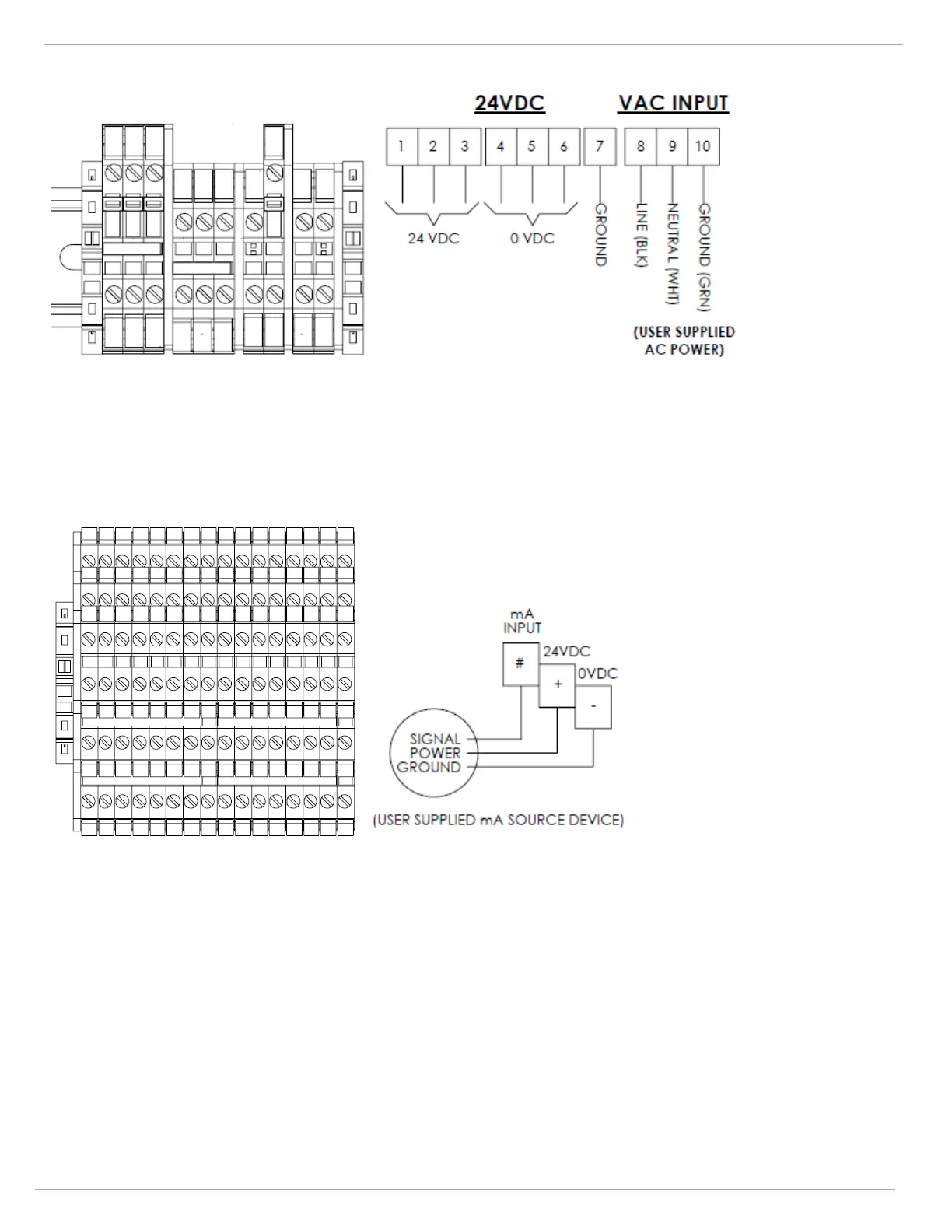

These inputs utilize a three-tier terminal block See the figures below for location and typical wiring connection.
