MSA SENTRY io User Manual

30 SENTRY io US
4 Configuration
6. Select the desired digital inputs, relays, and alarms.
7. Tap Apply to save the changes to the selected voting zone
and channel combination.
Repeat steps 2-9 for all desired voting zone and channel
combinations.
—or—
Tap Discard to cancel any current changes and re-enable
the Voting Zone textbox to make a new zone selection.
—or—
8. Tap Next to proceed to the Cause & Effect configuration.
NOTE: You cannot go back in the process once you tap
Next.

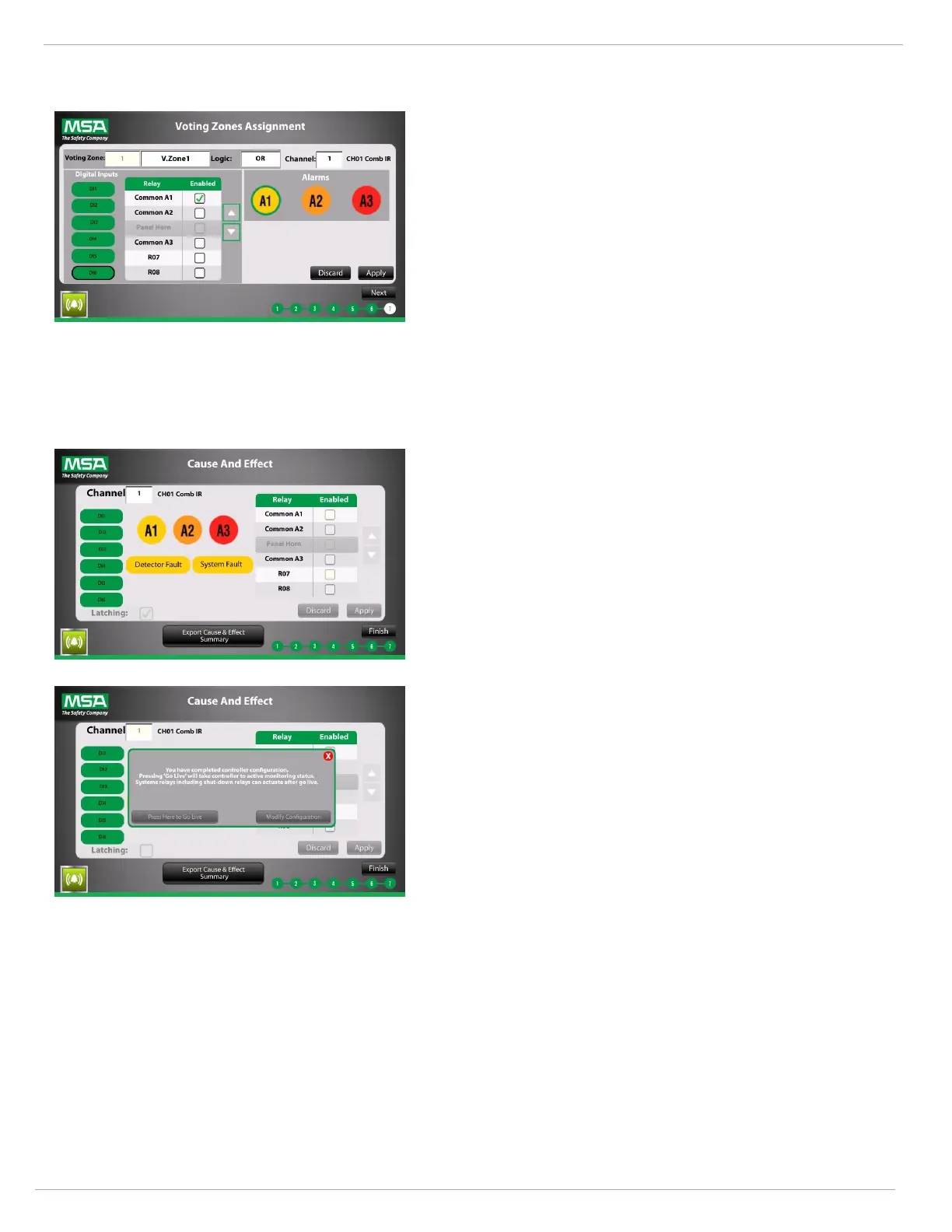

4.7 Cause and Effect
1. Tap the Channel textbox to select a channel.
2. You can add one or more causes to each channel. Select the
digital inputs, alarm icons, Detector Fault, or System Fault
to add it as a cause. You must select Apply for each selected
cause.
3. Select Enabled for the relay(s) that will be the effect of the
cause.
4. Tap Apply.
5. Repeat the previous steps for all cause and effect
relationships you need for each channel.
6. Tap Finish.
7. Tap Press Here to Go Live to complete the SmartStart
configuration wizard.
—or—
Tap Modify Configuration to go back to the Detector
Identifications screen and modify any necessary items of the
configuration.
