28
SENTRY
io
US
4
Configuration
4.5
Relays

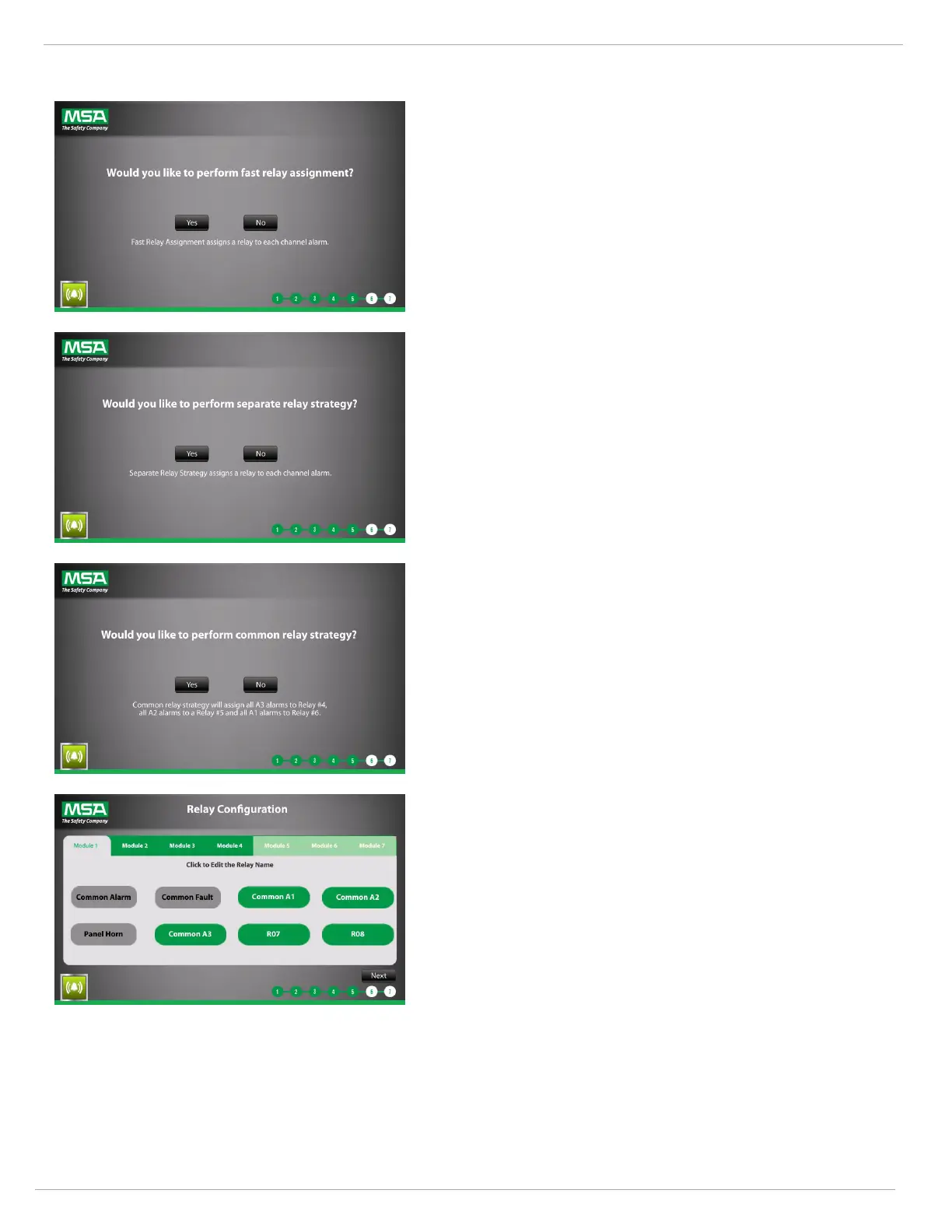

1.
Choose
whether
to
perform
fast
relay
assignment.
2.
If
performing
fast
relay
assignment,
choose
whether
to
perform
separate
relay
assignment.
3.
If
performing
fast
relay
assignment
but
not
performing
separate
relay
assignment,
choose
whether
to
perform
common
relay
assignment.
4.
Select
the
desired
module
tab
to
view
its
relays.
5.
Tap
a
relay
to
edit
it.
NOTE:
Relays
with
a
grey
background
cannot
be
edited.
27
