15

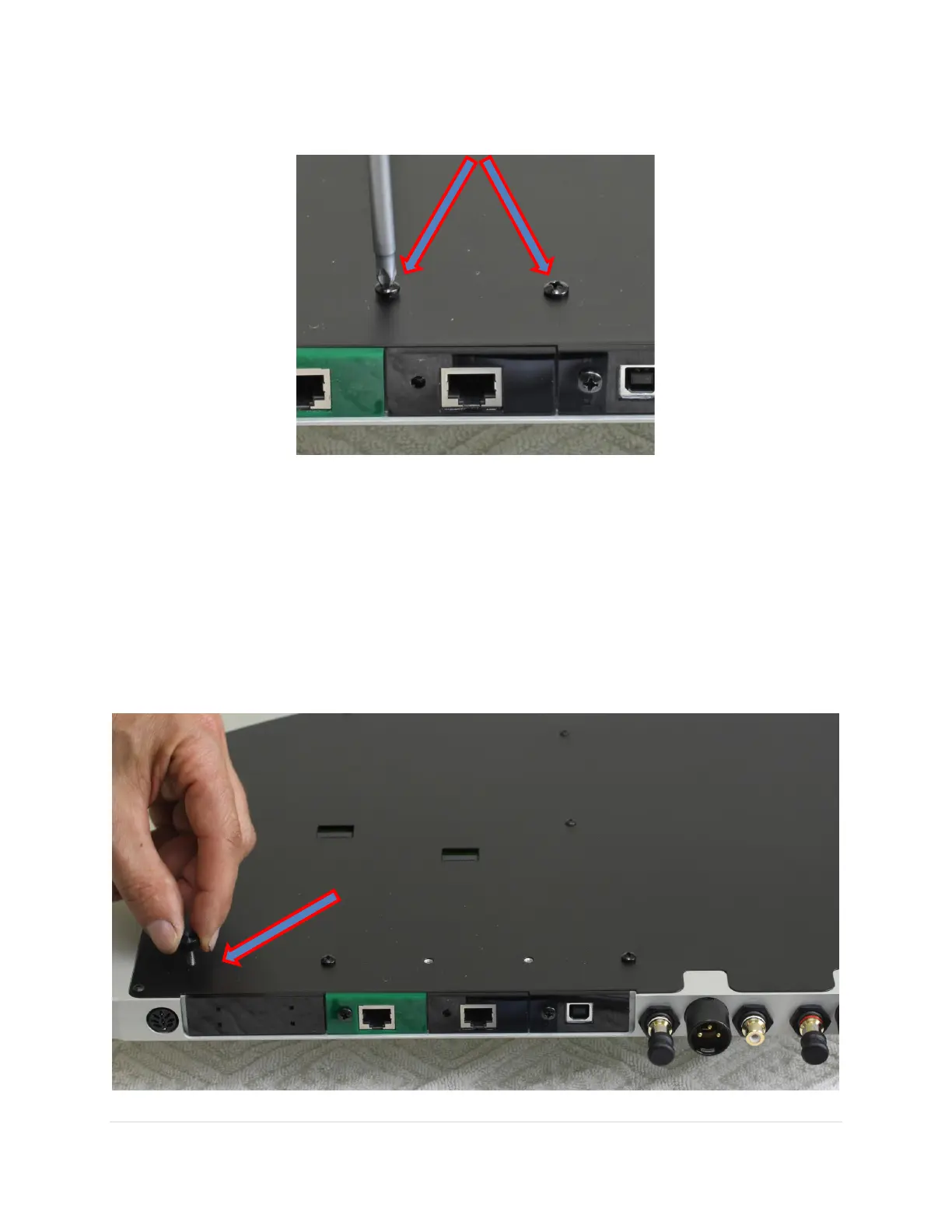

2b. Next, remove the two screws on the bottom adjacent to the module.
2c. Next, remove the knurled screw from the base of the DAC, near the power input plug.
This is your removal tool.
Please note: If the module does not have a Phillips head screw in the jack panel at the
front of the module, you can skip the next two steps and just gently remove the module
from its slot. Wiggle gently if needed. The module will slide out along the grooves within
the DAC.
