Tester MS016
22

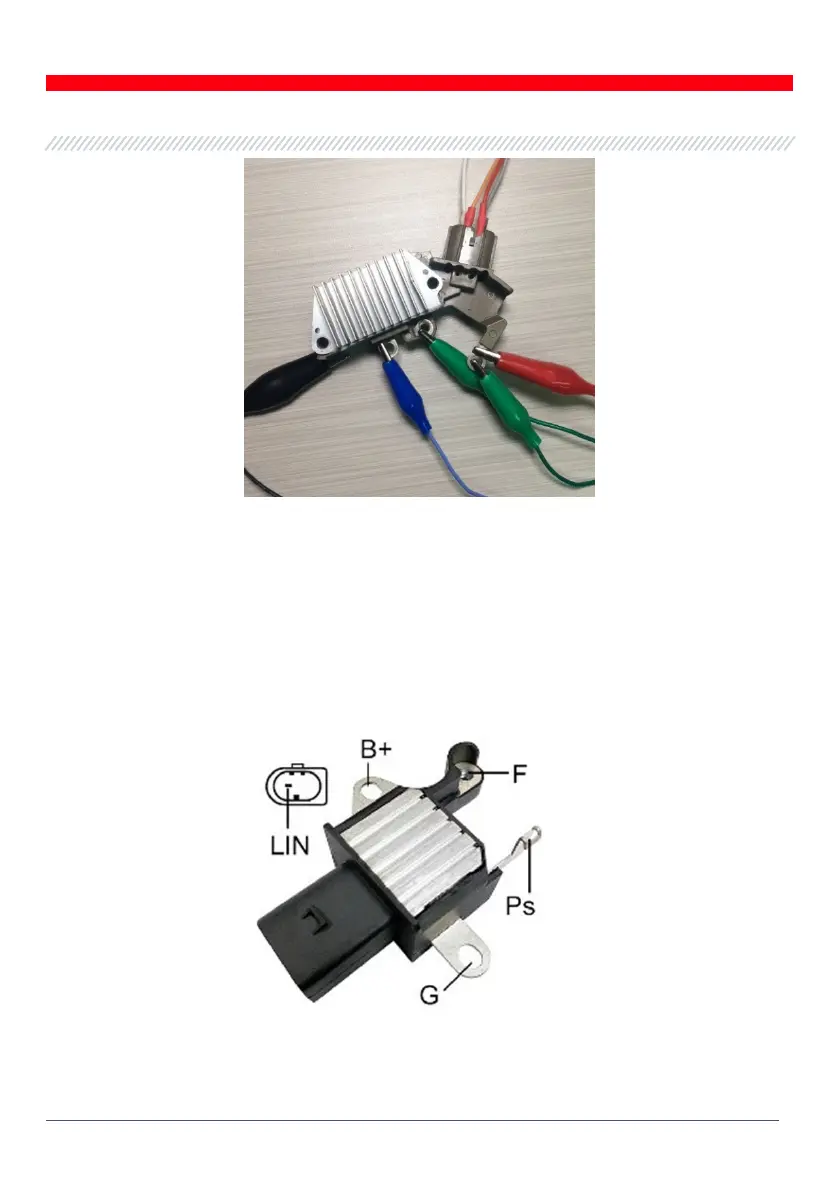

Figure 22 - Diagram of voltage regulator ARE6076 connection to the tester
Connection of voltage regulator ARE6076 has a specific feature. There is only one terminal shown
in Figure 21 – terminal F, to which we connect cable F1. The other green cable (F2) must be
connected to terminal B+, since one of the brushes is permanently connected to B+ while the
excitation winding is controlled through the brush connected to the alternator negative terminal
(A-circuit type).
Figure 23 shows the connection diagram of voltage regulator ARE6149P as an example.
Figure 23 - Voltage regulator ARE6149P
