WARNING! Test alternators either outdoors or in premises equipped either with a supply-and-
extract ventilation or an exhaust system.
5.1. Diagnostics of 12V alternators for Stop-Start Systems
Diagnostics of alternators for Stop-Start systems is almost the same as for COM-type units except
for the connection of a diagnostic cable.

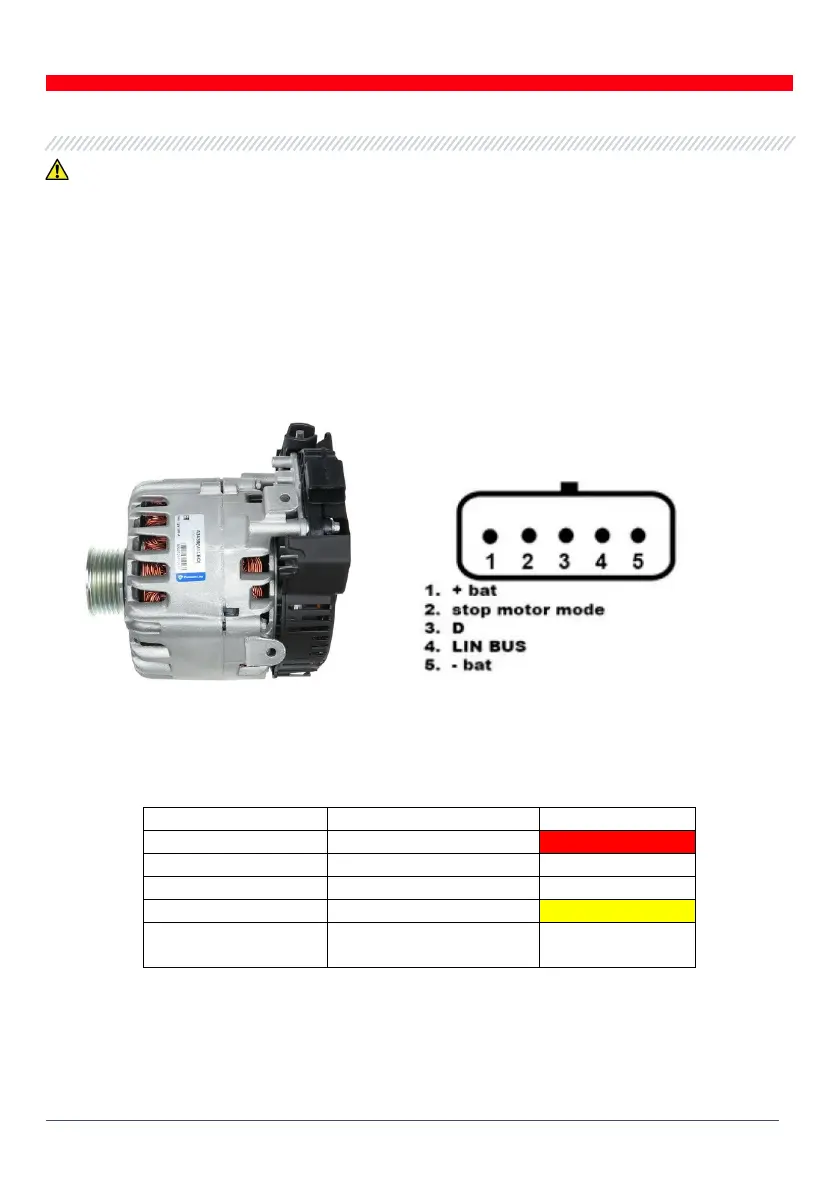

A connection diagram for Valeo IST60C017 is shown as an example in Fig.25.
Figure 25. Valeo IST60C017: marking of terminal pins
A diagram for connection of diagnostic cable MS-35301 to an alternator is shown in Table 5.
Table 5 – Connection of Valeo IST60C017
Terminal
Tester output terminal
Cable color
+ bat
IG (Ignition)
red
F stop motor mode
No connection
D
No connection
LIN
GC
yellow
- bat*
Connection to
alternator body
*
Connection of the “- bat” terminal to the alternator housing requires the use of a cable which
is not included in the package set.
