Operation manual
5
1. TESTER DESCRIPTION

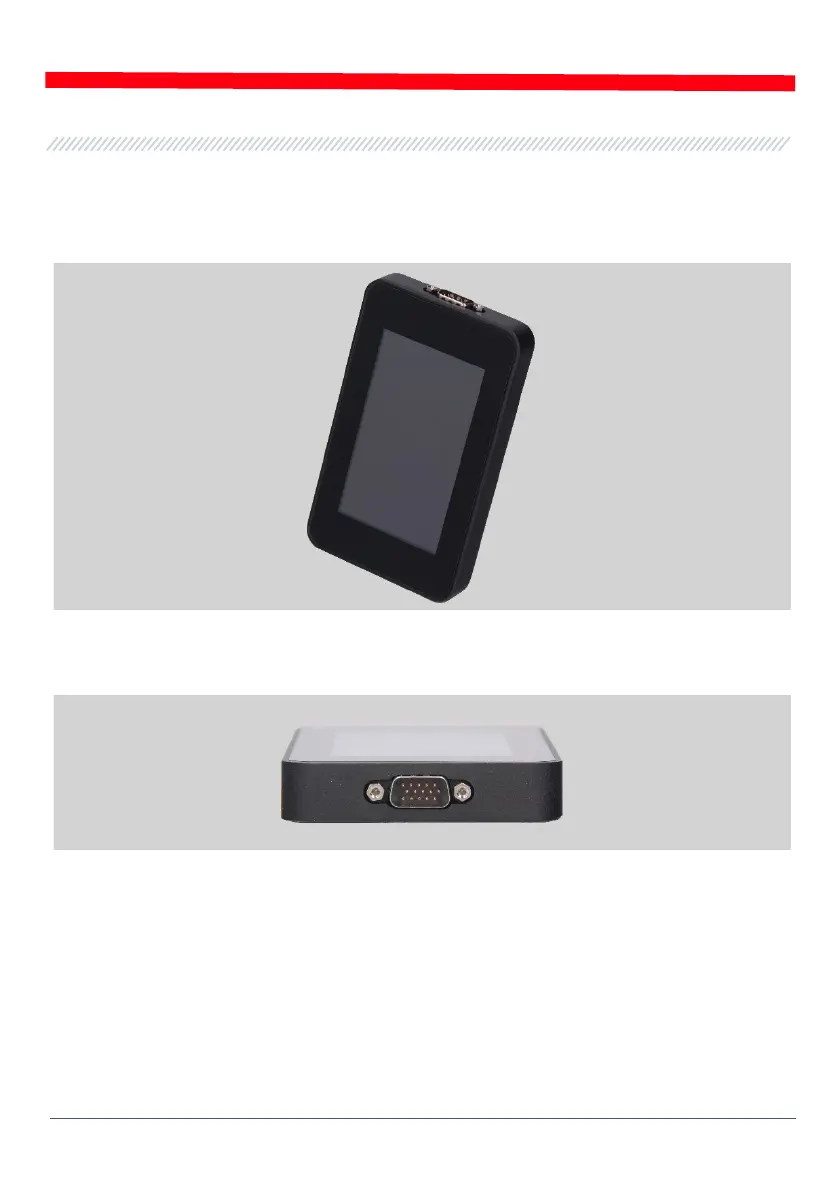

The tester is a portable device, its functions controlled via the touch-screen (Fig.1).
Figure 1 - General view of the tester
In the upper part of the device, there is a terminal for connection of diagnostic cables (Fig.2).
Figure 2 – Terminal for connection of diagnostic cables
There is a USB Type-C port in the bottom part of the tester, through which the power is supplied
to the tester during the diagnostics of voltage regulators. The USB port serves as well for
connection of the tester to a computer either for software updating or for data copying (Fig.3).
