6. FUNCTION “LIN Analyzer”
Function “LIN Analyzer” connects the tester to a LIN bus to read (save) data broadcasted via the
bus. There are two modes in LIN Analyzer – Analyzer and Bomber.

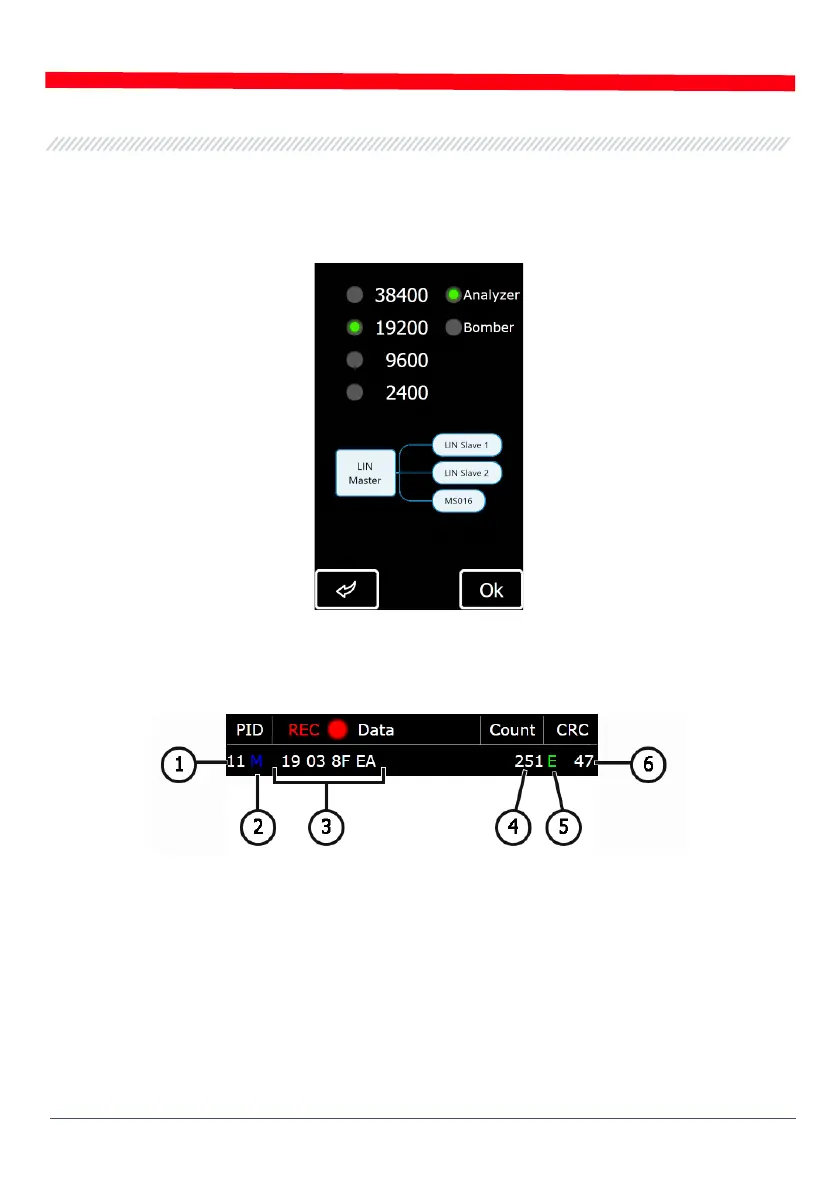

Figure 25. Screen to select a mode and a LIN bus speed
Information displayed on Analyzer/Bomber screens (Fig. 26):
Figure 26. Information displayed on Analyzer screen
1 – Unit ID number.
2 – Request status:
M – Response;
S – Request sent, no response (in Analyzer only);
Err – Tester cannot read the data (the bus speed can be selected incorrectly).
3 – Read Data;
4 – Data Count;
5 – LIN-bus Type:
