Operation manual
9

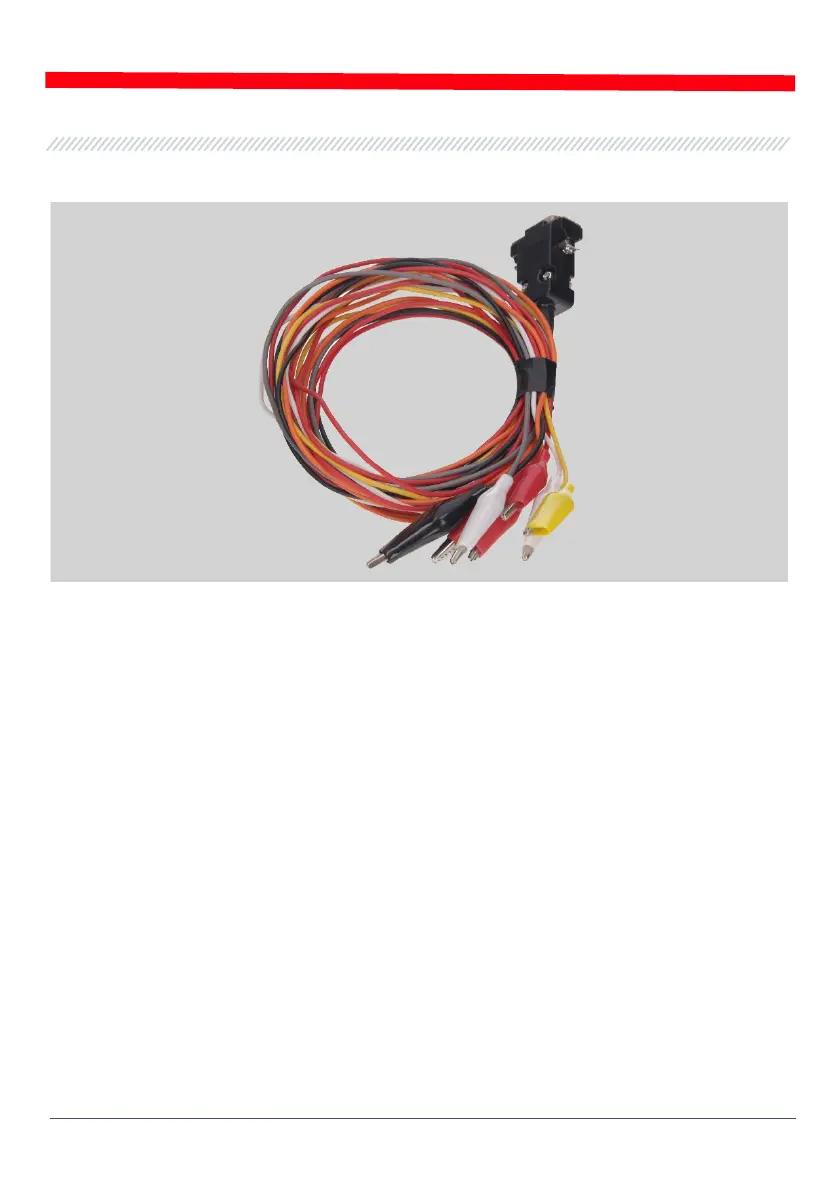

The equipment set includes a cable for alternator diagnostics (Fig.6).
Figure 6 – Diagnostic cable for alternators MS-33501
The diagnostic cable (Fig.6) has the following color markings:
• Red clip, big – „В+” – battery positive terminal, alternator output terminal. It is used to
supply power to the tester and read the alternator output voltage;
• Black clip, big – „В-” – battery negative terminal (alternator body);
• Orange clip, small - „S” (Sense pin);
• Red clip, small – „IG” (Ignition);
• White clip, small – „FR”;
• Grey clip, small – „D+”;
• Yellow clip, small – „GC”.
