MTD 700 Series Shop Manual

Medium Frame 2 & 3 Stage Snow Throwers
40

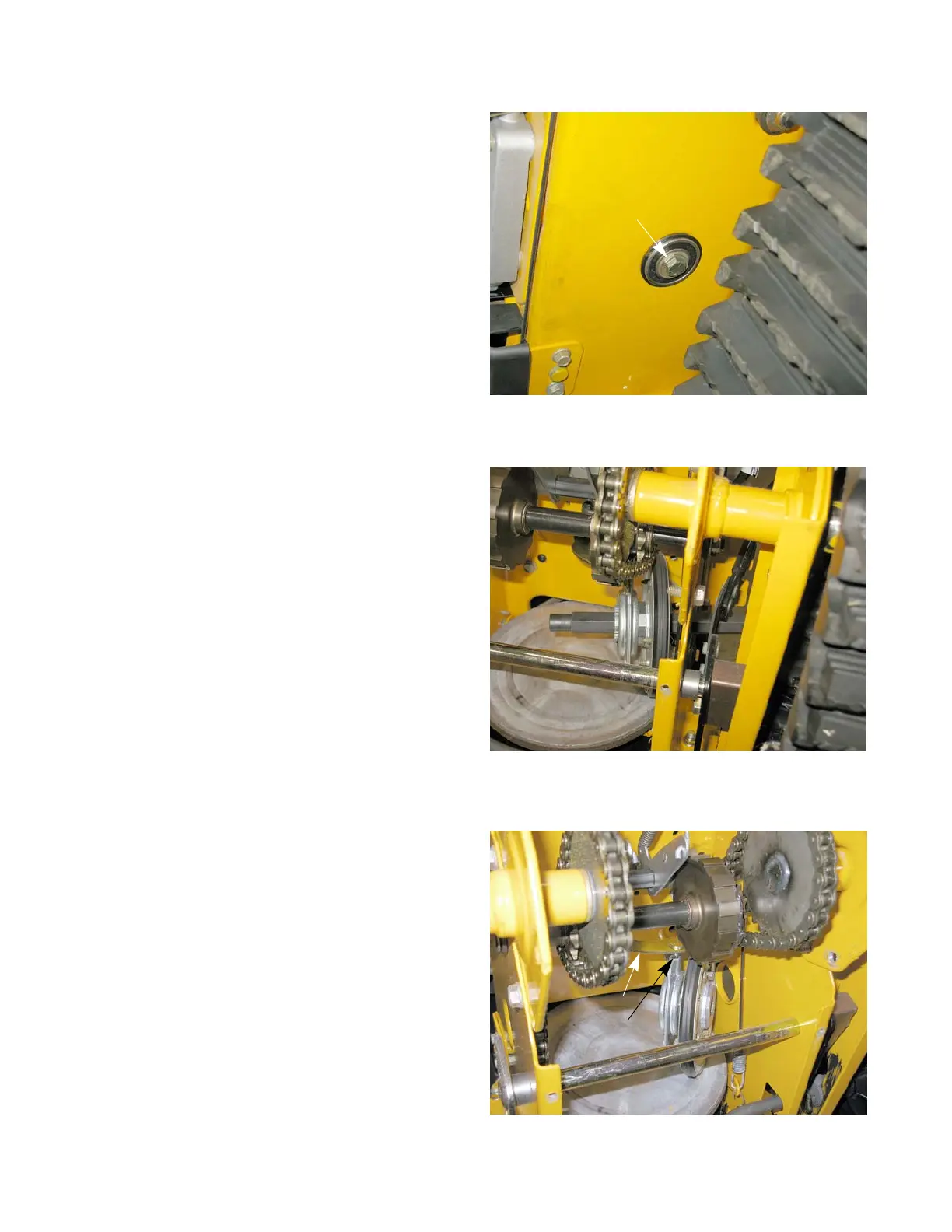

8. Remove the Patch Bolt and washer that secures the
left Hex Drive Shaft Bearing. See Figure 5.8.
9. Remove the bearing and spacer.
10. Slide the Hex Drive Shaft out of the unit from the
right side. See Figure 5.9.
NOTE: The Friction Wheel Assembly is now free.
Inspect and replace the Friction Wheel if
there are any signs of wear or damage.
To install the Hex Drive Shaft:
11. Verify that the Friction Wheel Assembly is engaged
with the pin on the Shifter Arm. See Figure 5.10.
Figure 5.8
Patch bolt
Figure 5.9
Figure 5.10
Shifter Arm
Pin
