Medium Frame 2 & 3 Stage Snow Throwers
140
Electric Chute Control Pitch Cables
To remove/replace the Pitch Cables:
1. Remove the Chute Control Assembly by following
the procedures described in the Chute Control
Assembly section of this chapter.
2. Remove the screws, indicated by the arrows in Fig-
ure 11.56, using a #2 Phillips screwdriver.
3. Depress the five tabs, indicated by the arrows in
Figure 11.57, while separating the two housing
halves.
4. Place an identifying mark on one of the cables the
housing to facilitate proper re-assembly. See Figure
11.58.

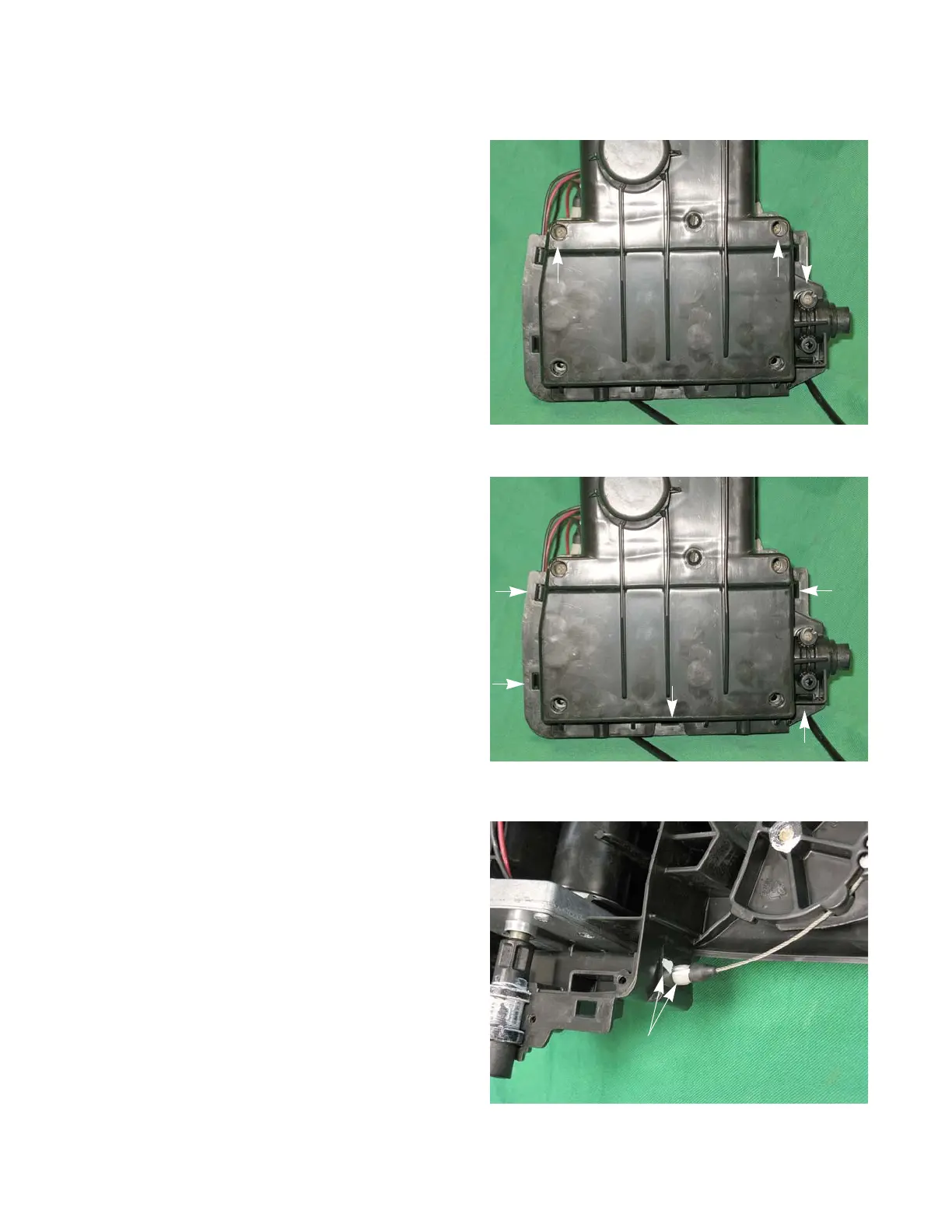

Figure 11.56
Figure 11.57
Figure 11.58
Identifying Mark
