5. Disconnect the cables from the Cable Guide. See
Figure 11.59.
6. Squeeze in the barbs on the Cable Jacket End, while
pulling the cable out of the housing. See Figure
11.60.
7. Install the cables by following the previous steps in
reverse order.
NOTE: Forward movement of joystick should result in the
Chute Deflector moving down.
NOTE: If the pitch cables connections are reversed, the
pitch control will operate the chute deflector in the
opposite direction of what is expected.
NOTE: Make sure the Chute Pitch Adapter engages the
Cable Guide as the housings are brought together.
See Figure 11.54.

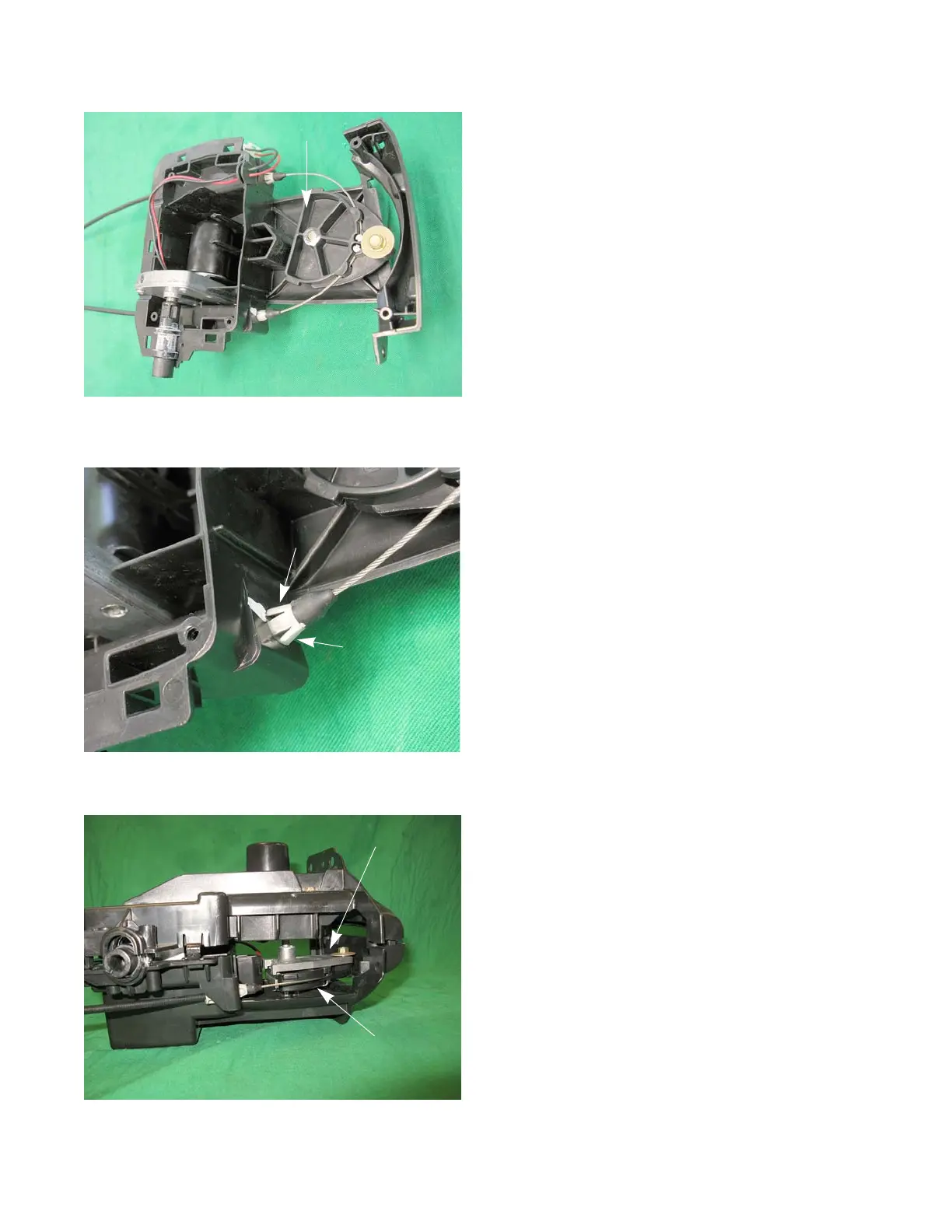

Figure 11.59
Cable Guide
Figure 11.60
Figure 11.61
Cable Guide
Chute Pitch Adapter
