Belts and Cables
13
Drive Clutch Control Cable
To remove/replace the Drive Control Cable:
NOTE: The drive control is on the right handle.
1. Stop the engine and allow it to cool. Disconnect the
spark plug wire and ground it to the engine.
2. Drain the fuel into an approved container.
3. Carefully tip the snow thrower forward so it rests on
the auger housing opening.
4. Place an alignment mark on the adjustment bracket
and
the frame. See Figure 2.14.
5. Detach the cable from the engagement handle.
NOTE: On units with threaded Z-fittings:
• Loosen the jam nut.
• Unthread the cable from the Z-fitting.
6. Remove the bottom access panel.
7. Unhook the spring end of the cable from the Drive
Platter Support Bracket. See Figure 2.15.
8. Unhook the cable from the pulley on the adjustment
bracket.
9. Install the cable by following the previous steps in
reverse order.
10. Test run the snow thrower in a safe area before
returning it to service.

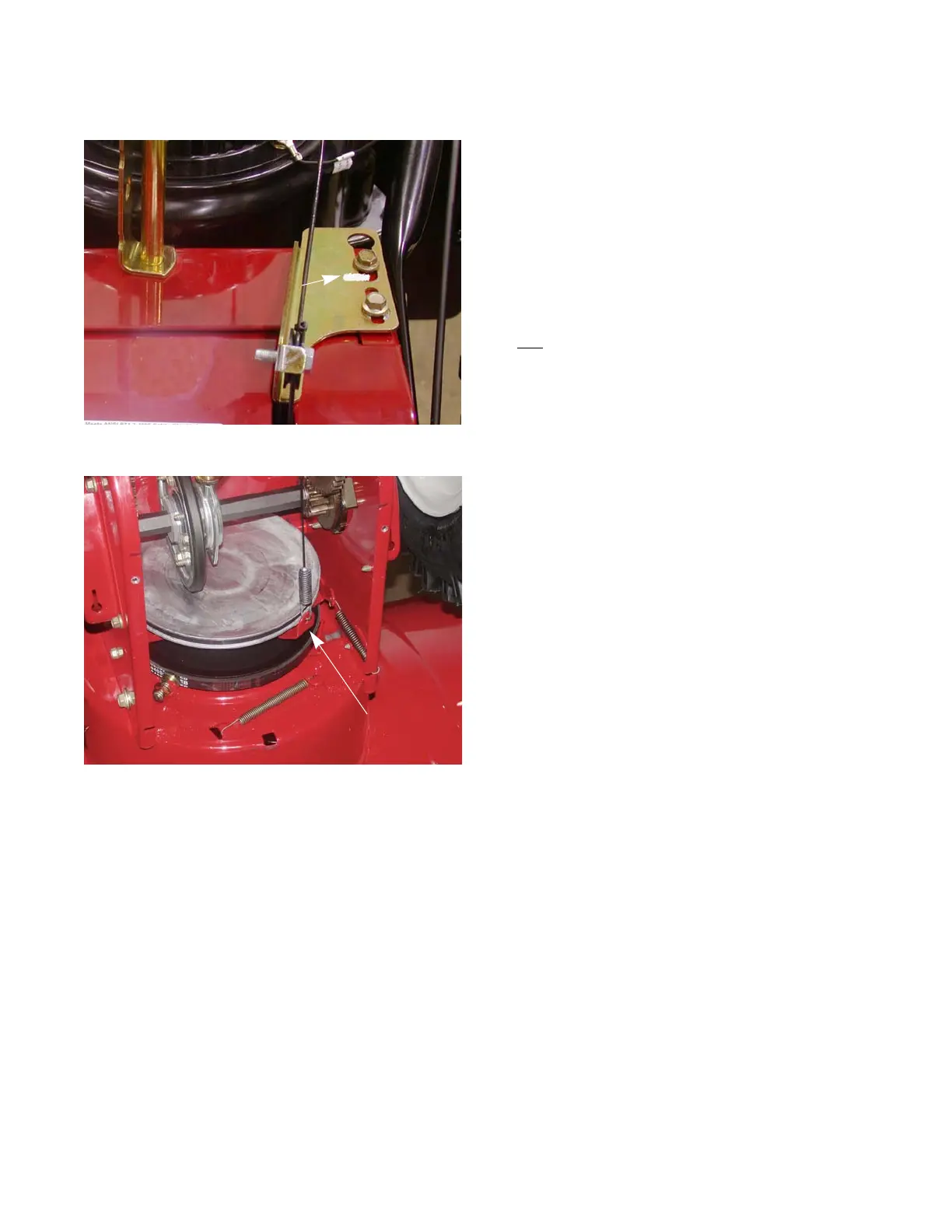

Figure 2.14
alignment mark
Figure 2.15
Drive platter support bracket
