MTD 700 Series Shop Manual

Medium Frame 2 & 3 Stage Snow Throwers
100
Discharge Chute (with Remote Head)
1. Remove the pitch control by following the proce-
dures in the Remote Pitch Control Head section of
this chapter.
2. Remove the bow tie clip.
3. Remove the clevis pin that holds the Remote Head
to the Support Bracket. See Figure 9.7.
4. Remove the wing nut.
5. Remove the bolt that secures the Remote Head to
the Discharge Chute. See Figure 9.8.
6. The Chute Deflector will lift off of the Discharge
Chute. See Figure 9.9.

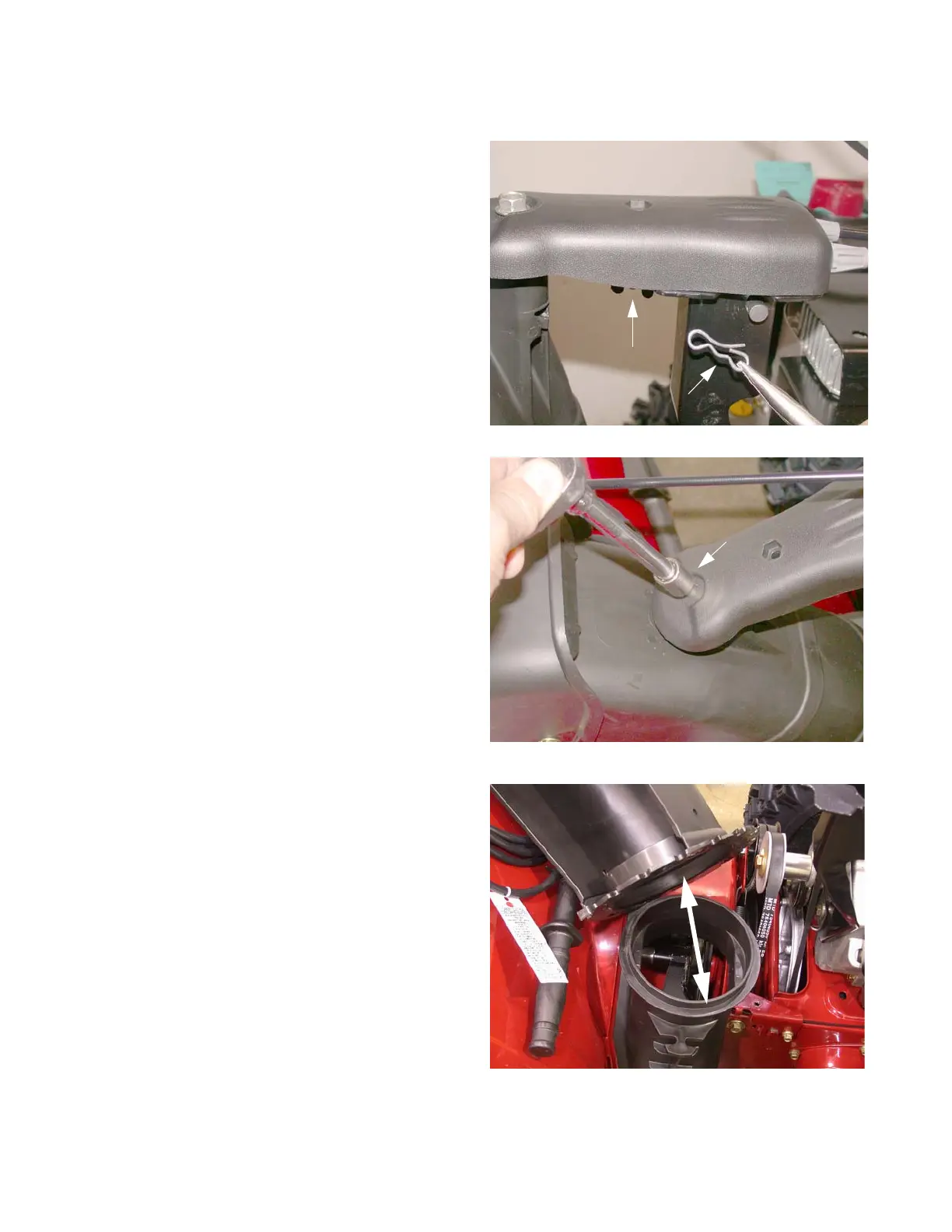

Figure 9.7
Bow Tie Clip
Wing Nut
Figure 9.8
Figure 9.9
