Belts and Cables
7
Auger Belt
To remove/replace the Auger Belt:
NOTE: Prior to servicing or replacing any belts stop the
engine and allow it to cool. Then disconnect spark
plug and ground it to the engine
NOTE: If the unit is throwing the Auger Belt, inspect the
round part of the Auger Housing that the impeller
spins in. If there is a buckle or a crease in it, the
Auger Housing is bent and must be replaced
before replacing the belt.
1. Remove the two screws that secure the belt cover
using a 3/8” wrench. See Figure 2.1.
2. Lift the belt cover off of the unit.
NOTE: Some units have a belt guide. The belt guide can
be removed by removing the two screws, by the
arrows in Figure 2.2., using a 1/2” wrench.

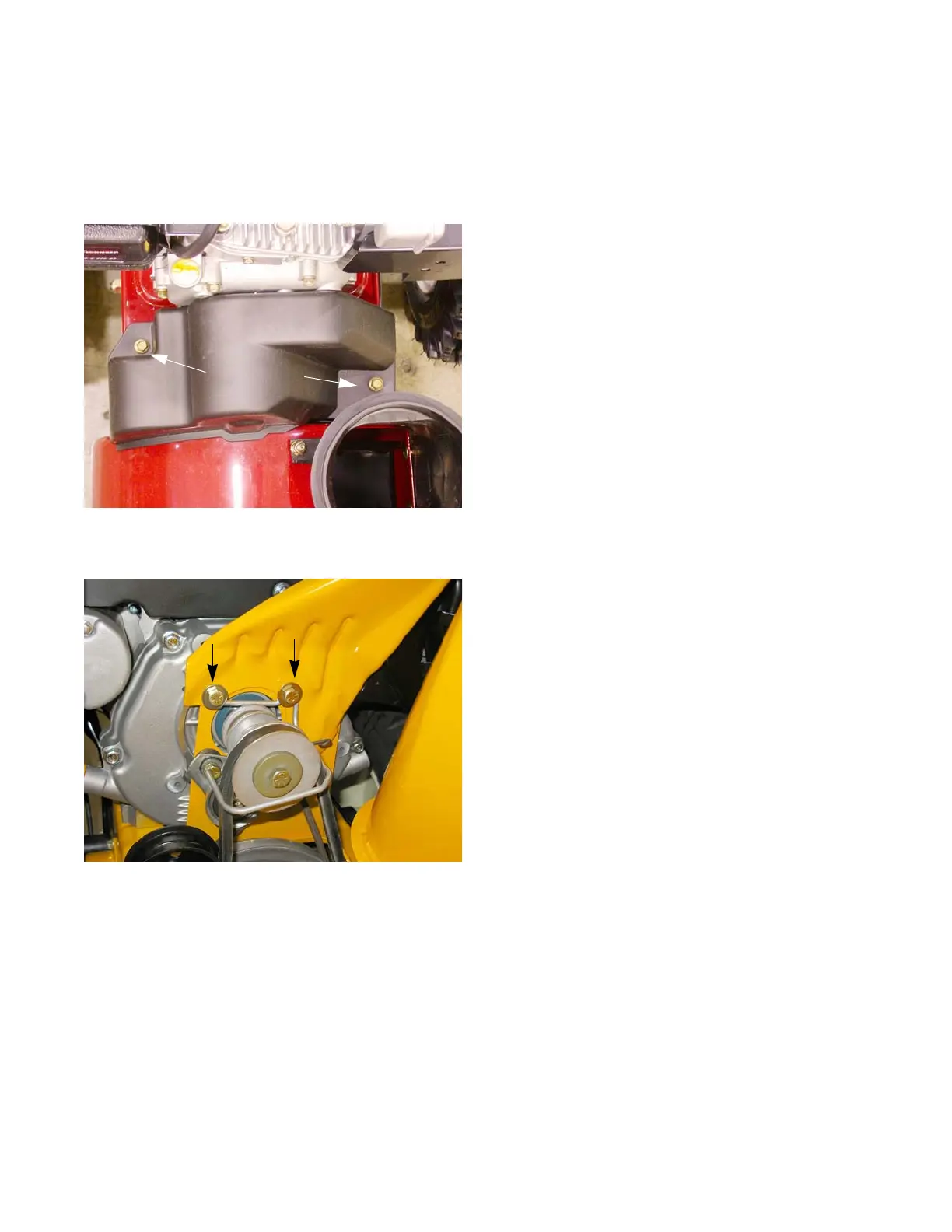

Figure 2.1
3/8”
Hex Screws
Figure 2.2
Chapter 2: Belts And Cables
