MTD 700 Series Shop Manual

Medium Frame 2 & 3 Stage Snow Throwers
4
The 600 series features:
• Solid drive wheel axles
• Auger housing width of 22” - 30”
• 2 stage augers
The 700 series features:
• Track drive (2 and 3 wheel versions)
• Auger housing width of 24” - 30”
• 2 stage and 3 stage augers available.
Understanding Model And Serial Numbers
The model and serial numbers are located on a white
sticker with a bar code. The sticker is located at the back of
the machine, below and to the left of the speed selector
shaft.

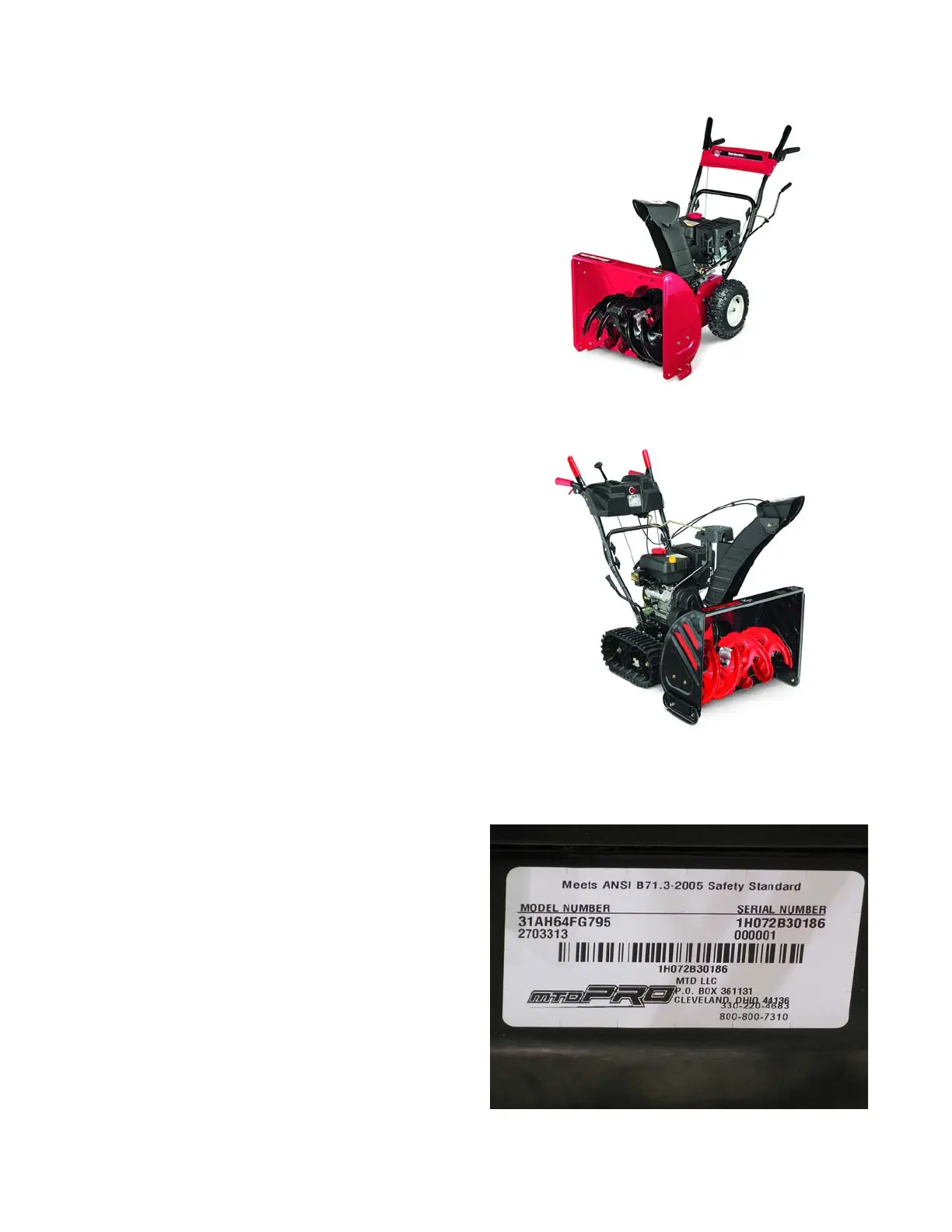

Figure 1.2
600 Series
Figure 1.3
700 Series
Figure 1.4

MTD 700 Series Specifications

General

Turning Radius	18 inches
Engine Type	Single-cylinder
Drive Type	Rear-wheel drive
Tire Size (Front)	15x6.00-6
Tire Size (Rear)	20x10.00-8
