Medium Frame 2 & 3 Stage Snow Throwers
102
Joystick (Cable Style)
To remove/replace the joystick:
NOTE: The Remote Head and cables are part of the
joystick and can not be serviced separately.
NOTE: The procedures described here will cover
the 2-way and the 4-way joystick.
1. Remove the bow tie clip from the clevis pin that
holds the pivoting assembly to the support bracket.
See Figure 9.11.
2. Remove the wing nut and screw directly in front of
the clevis pin,
3. Remove the shoulder bolt that secures the Remote
Head to the Discharge Chute. See Figure 9.12.
NOTE: If the unit is equipped with remote pitch con-
trol, refer to the Remote Pitch Control Head
section to remove the pitch control.
4. Slide the cables from the Cable Retainer positioned
on the engine. See Figure 9.13.
5. Remove the Auger And Drive Lever Interlock by fol-
lowing the procedures described in Chapter 2: Belts
and Cables.

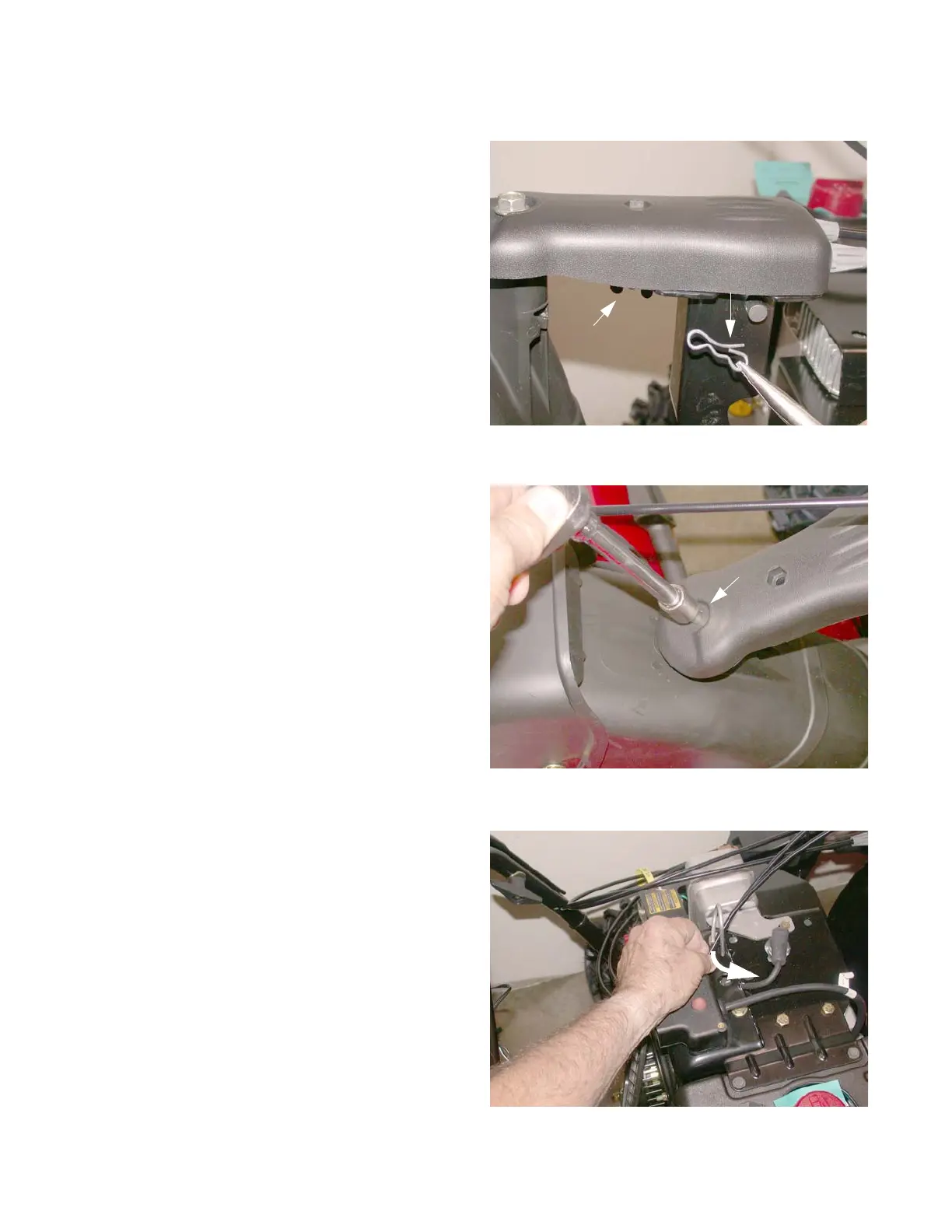

Figure 9.11
Bow Tie
Clip
Wing Nut
Figure 9.12
1/2”
Socket
Figure 9.13
