Medium Frame 2 & 3 Stage Snow Throwers

142

NOTE: Make sure the Rotation Motor Harness

Grommet is seated in the notch in the hous-

ings.

NOTE: Make sure both motor harnesses are routed

to the rear of the assembly as the housings

are brought together. See Figure 11.55.

NOTE: Tighten the three housing screws to a torque

of 10 - 20 in lbs (1 - 2 Nm).

8. Install the Chute Control Assembly by following the

procedures described in the Chute Control Assem-

bly section of this chapter.

9. Test run the unit in a safe area before returning it to

service.

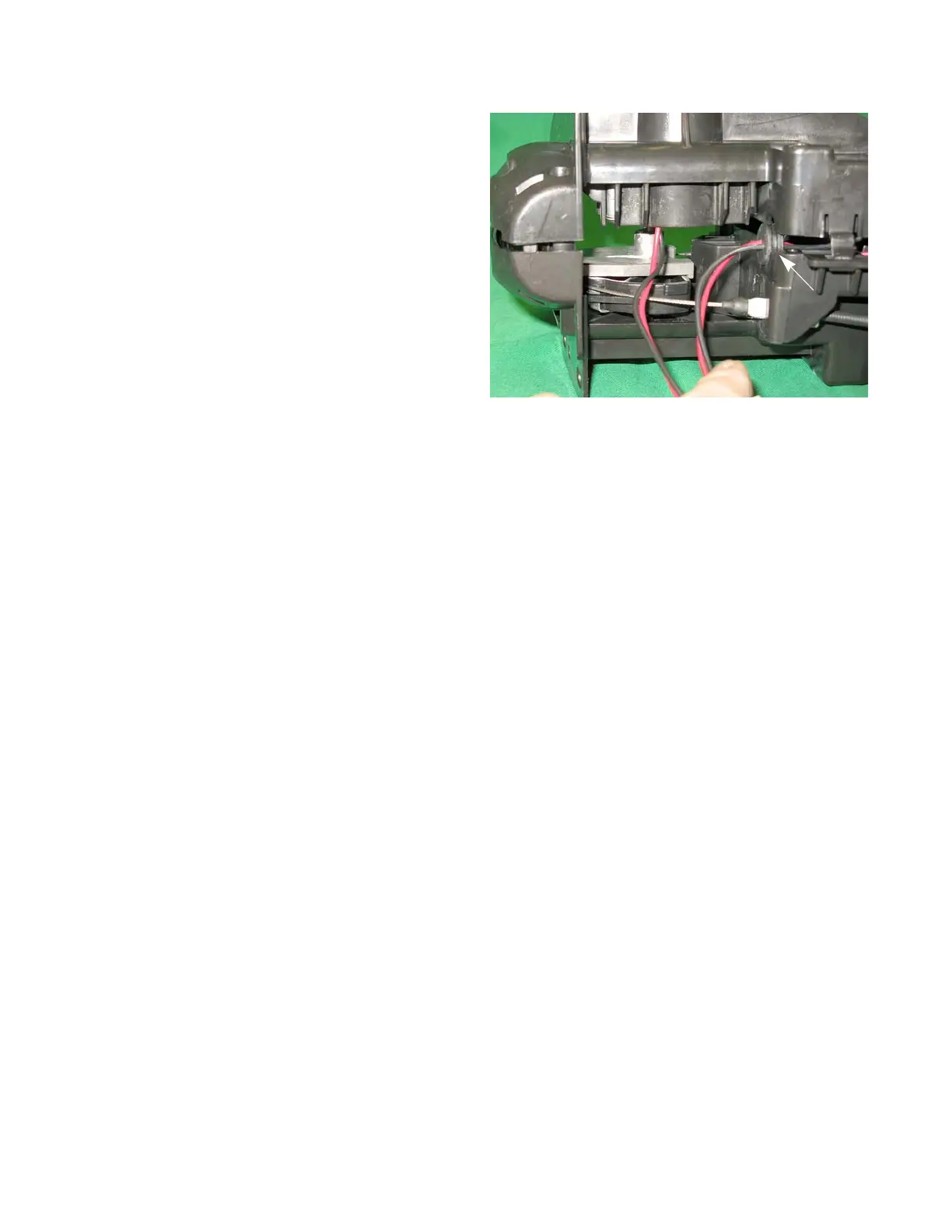

Figure 11.62

Grommet
