41

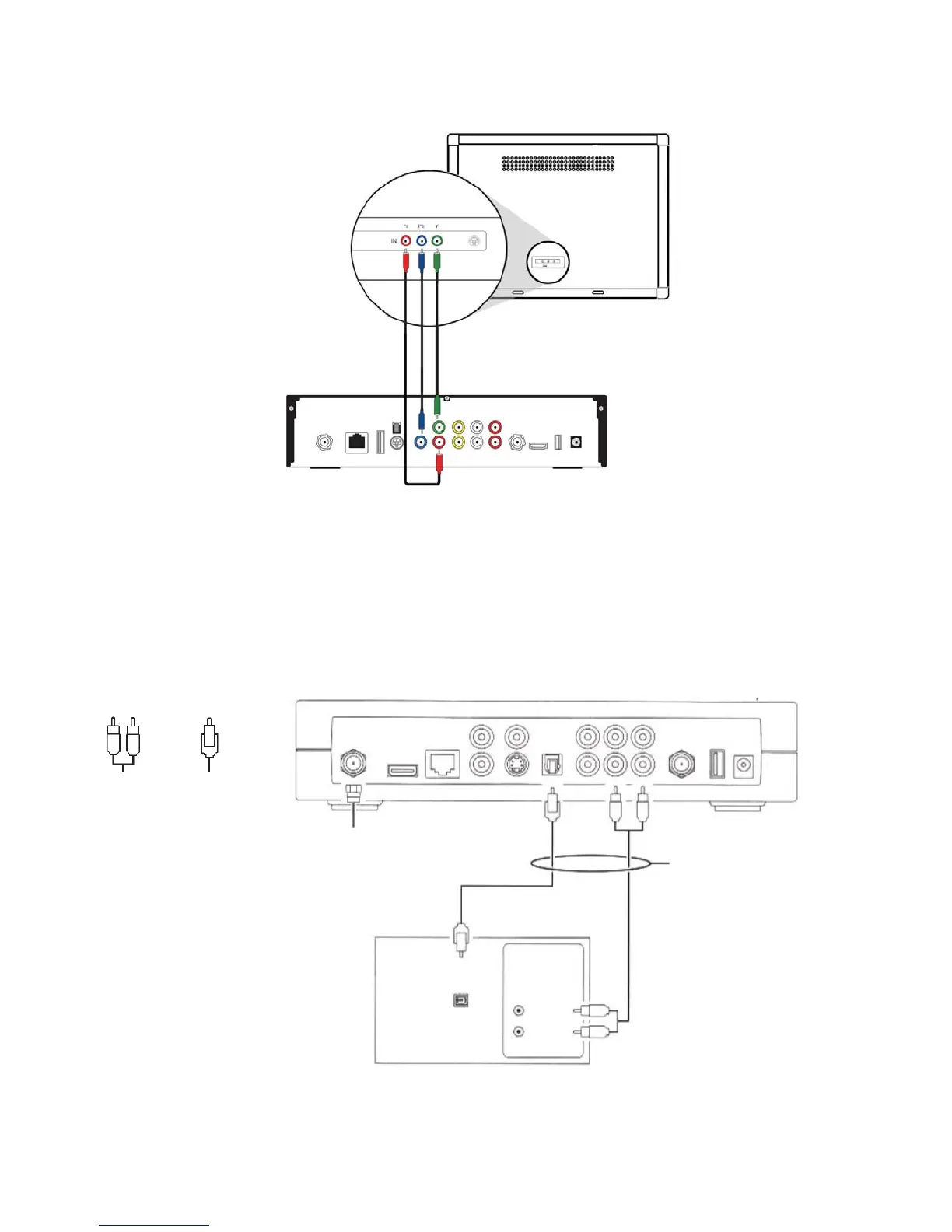

Connect to an HDTV – Audio only
• To determine your best connection, refer to Video Connection Options.
• If you are connecting to a DVI or Y Pb Pr input on your TV, a separate audio connection is required. Refer to
Connect to an HDTV – Audio Only
• If you are connecting to a home theatre receiver, refer to Connect to a Home Theatre – Audio Only
Set-top box
Optical
S/PDIF
RCA-type
Audio
These connections serve the
same purpose, use only one
Video in
Sample HDTV Audio Inputs
TO WALL
(VIDEO IN)
HDMI NETWORK
Pb
Pr
Y
S-VIDEO
OPTICAL
LR
VIDEO OUT AUDIO OUT
TO TV
(VIDEO OUT)
USB
POWER
+12V
DC
OPTICAL
S/PDIF
INPUT
AUDIO LEFT
AUDIO RIGHT
VIP 2262 PVR – Option 2
VIP 1216
