Operating job computer on the field
Controlling the boom
6
Lifts the boom.
Lowers the boom.
The boom is being raised. The arrow indicates the direction.
The boom is being lowered. The arrow indicates the direction.
Folding and unfolding the boom
This function folds and unfolds the orchard or vineyard sprayer boom.
Operation depends on the following factors:
▪ Number of boom parts that can be folded in and out.
▪ Type of orchard or vineyard sprayer.
This is how you reach the screen with this function:
Structure of a boom

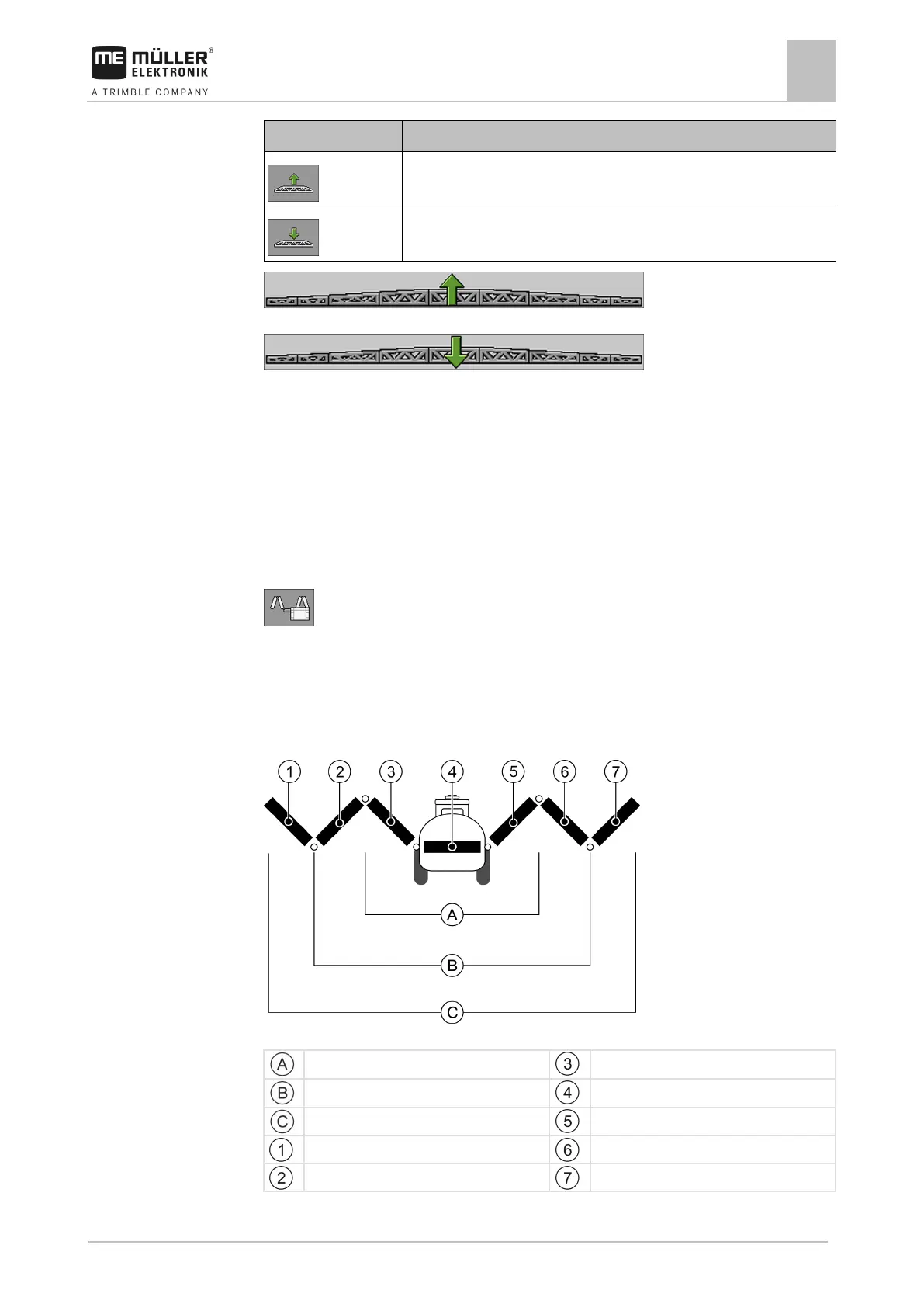

The following diagram shows the structure of booms and what the individual boom parts are called.
The diagram shows an orchard or vineyard sprayer with a seven-part boom, but it also applies to
smaller booms.
Parts of the boom on an orchard or vineyard sprayer
Three-part boom
Boom part: Inner left
Five-part boom
Boom part: Unmoving part
Seven-part boom
Boom part: Inner right
Boom part: Outer left
Boom part: Middle right
