Muller TOUCH800 - Port C

Technical specifications
Pin-out diagrams
12
30322538-02-EN
V9.20191001
81
The connector can be used for the following purposes depending on its assignment:
Purpose
Pins used
As second CAN interface
7, 9
As second serial interface
2, 3, 4, 5
As signal input for two digital and one analog
signal.
1, 5, 6, 8
Pin
Signal name
1
Wheel sensor
1
6
PTO
2
2
/RxD2
7
CAN2_H
3
/TxD2
8 Work position sensor
3
or
Reverse signal for determining the course
4 Voltage supply for GPS receiver
Switched input voltage, ≤ 250 mA
9
CAN2_L
5
GND
Electromagnetic
shielding
ESD/EMV shielding
Legend:
1
) Digital input as per: ISO 11786:1995 chapter 5.2
2
) Digital input as per: ISO 11786:1995 chapter 5.3
3
) Analog input as per: ISO 11786:1995 chapter 5.5

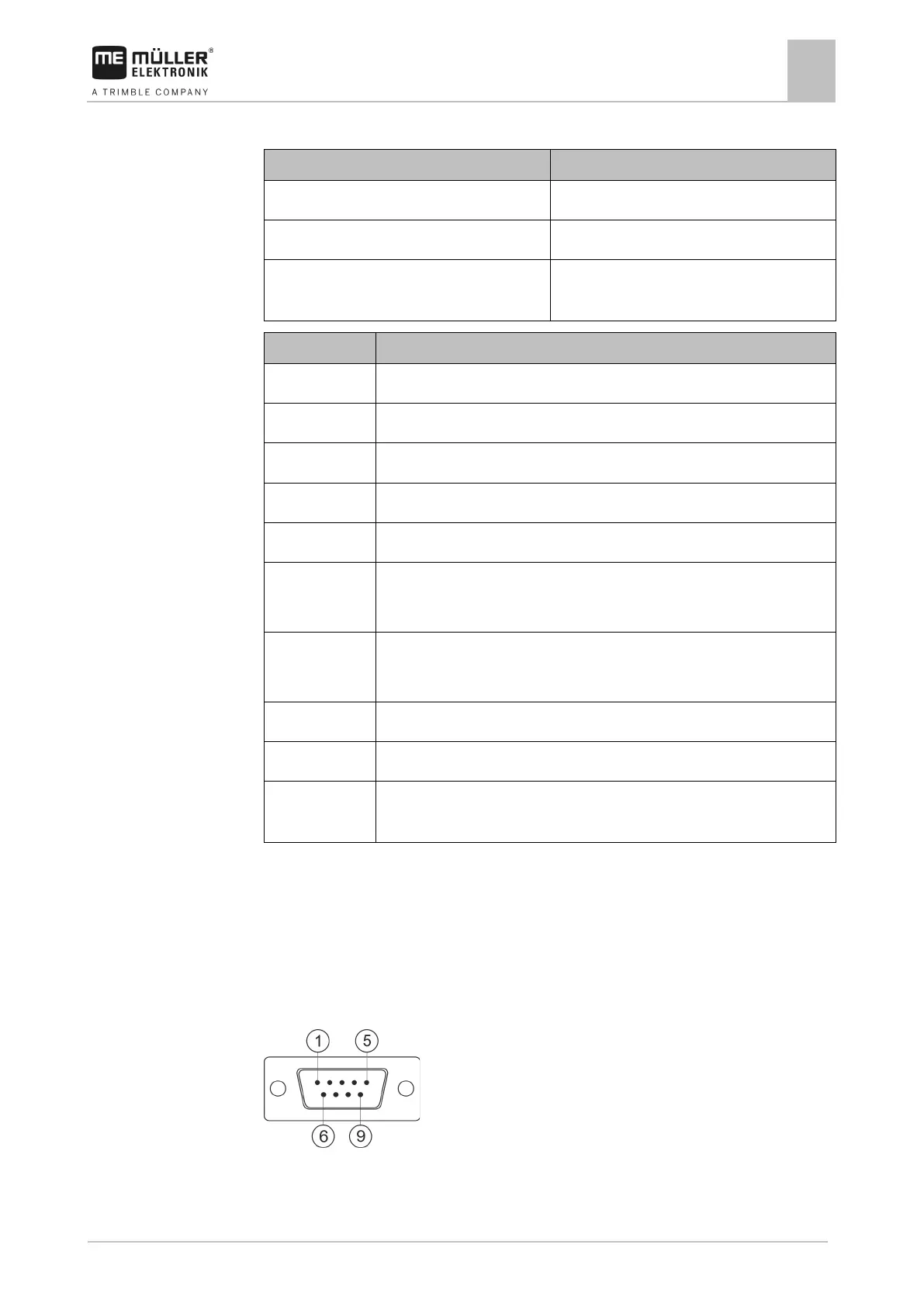

Port C
9-pin Sub-D connector
12.2.3
