Muller TOUCH800 - CAM Port

12
Technical specifications
Pin-out diagrams
82
V9.20191001
30322538-02-EN
Pin
Signal name
Function
1 (DCD1) Switched input voltage, ≤ max. 250 mA total (Pin 1
+ Pin 4)
6
DSR
DSR
2
/RxD
/RxD
7
RTS
RTS
3
/TxD
/TxD
8
CTS
CTS
4 (DTR) Switched input voltage, ≤ max. 250 mA total (Pin 1
+ Pin 4)
9
(RI)
5 V ≤ 250 mA
5
GND
Signal ground
Electromagnetic
shielding
Electromagnetic shielding ESD/EMV shielding

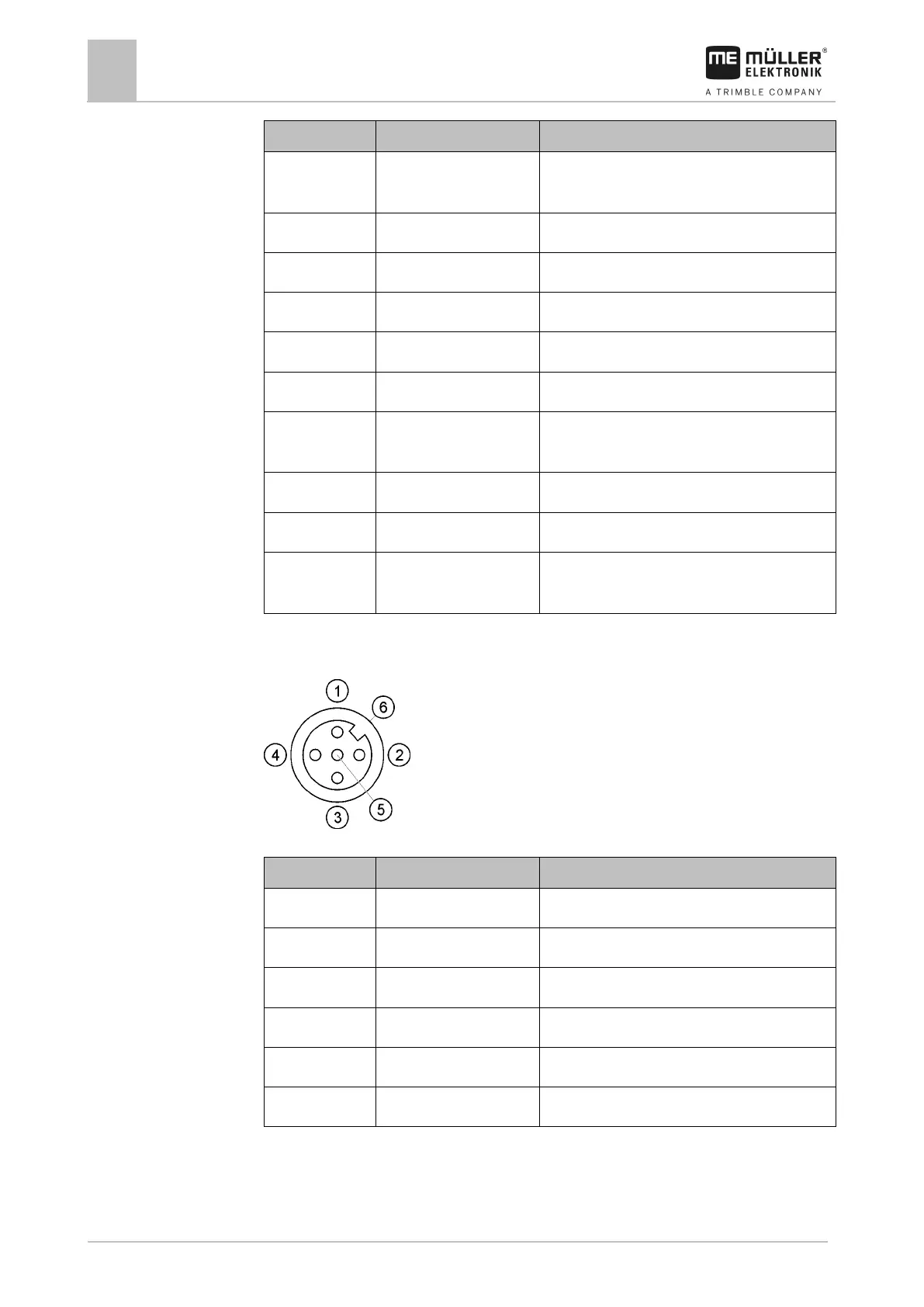

CAM port
M12 socket: Camera
Pin
Signal name
Function
1
Power
Voltage supply, max. 250 mA total
2
Power GND
Supply ground
3
FBAS2
Camera
4
FBAS
Camera
5
Signal GND
Signal ground
6
Electromagnetic shielding
ESD/EMV shielding
12.2.4
