4.2.3.3. RTSP protocol
When user sets the Output to RTSP then additional settings related to compression have to be
provided. Compression type is set automatically when user connects to the stream (H.264 and Lossless
streams are provided on different addresses). Only one type of stream may be active at the moment
(e.g. it is impossible to connect to H.264 RTSP stream on LAN 1 and LLE stream on LAN 2 at the same
time). Only one stream per LAN maybe active at any given time.
1
2
3
4
7
8
9
10
5
6
11
12
13

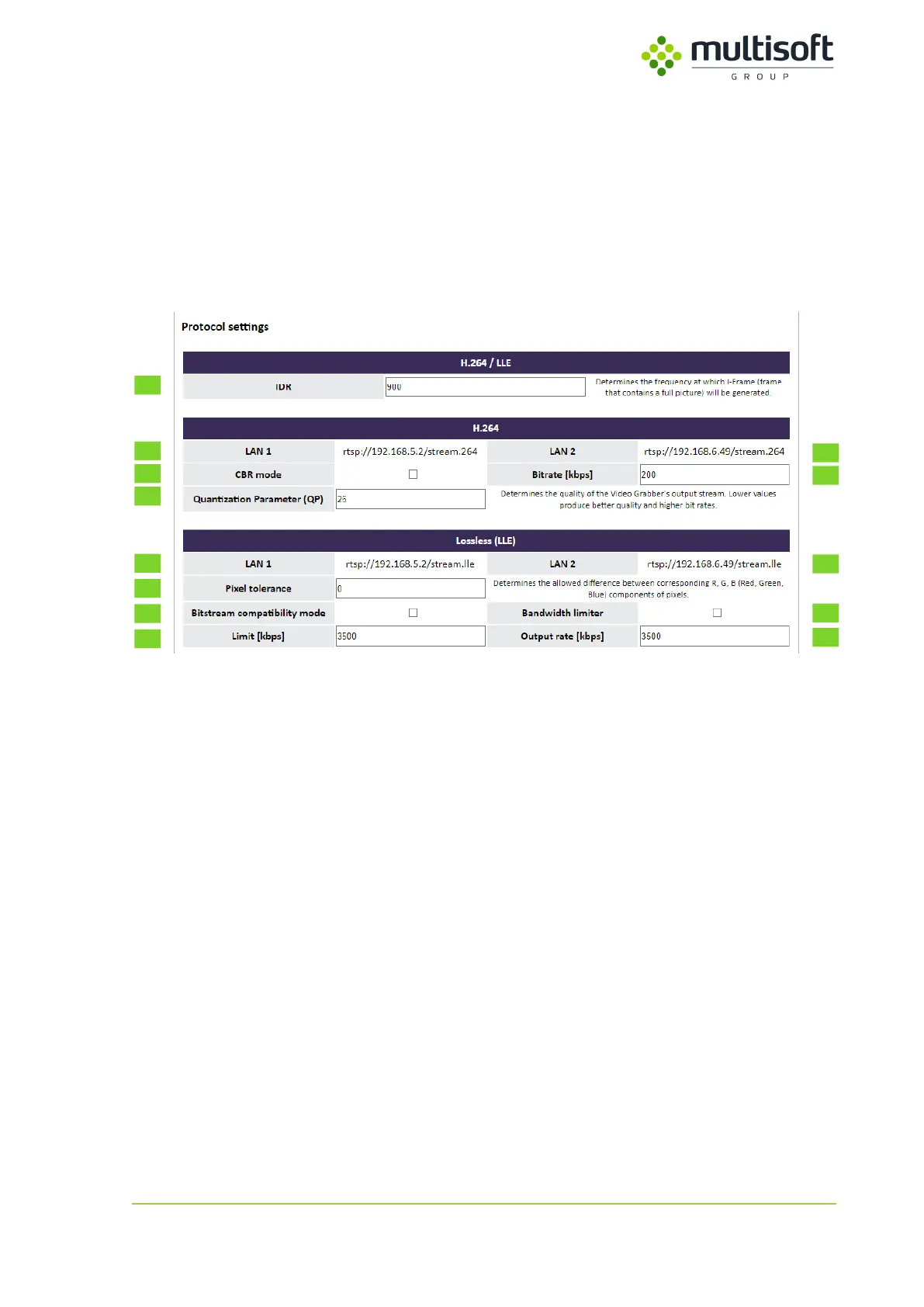

Table 19: RTSP protocol settings
Settings have been grouped into three sections:
1. H.264 / LLE – contains parameter that is common for both H.264 and Lossless (LLE)
2. H.264 – contains parameters for H.264
3. Lossless (LLE) – contains parameters for Lossless (LLE)
