Video Grabber DGR-1000 User Manual - v. 1.4 (FW 1.9)
4.2.3.4. Examples
There are plenty of possible Output configuration sets. See sample setups below:
Example 1
Video Grabber captures the video signal at a rate of 60 frames per minute (1FPS) and then broadcasts
captured data.

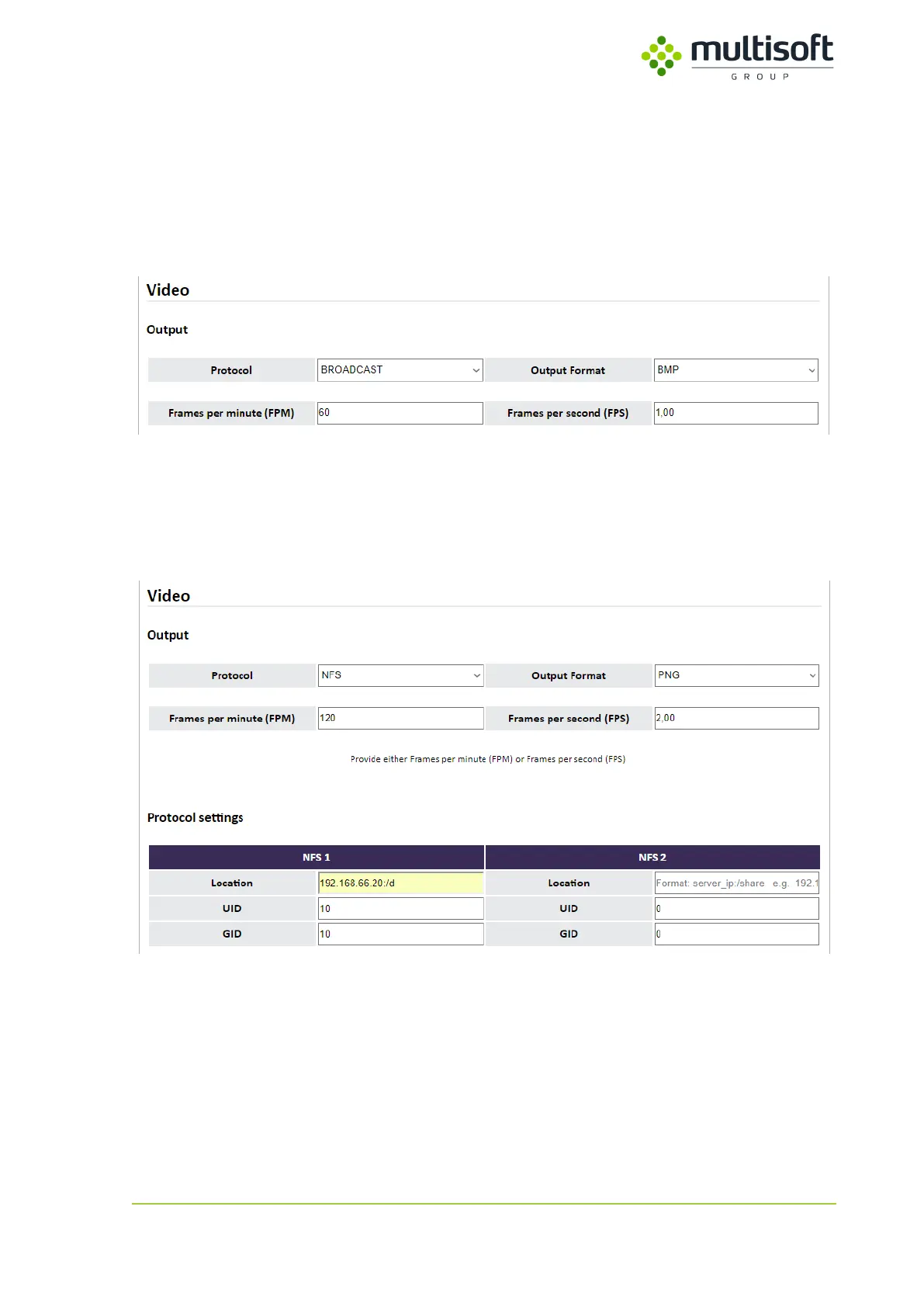

Figure 30: Sample configuration of Video Grabber broadcasting BMP files
Example 2
Video Grabber captures the video signal at a rate of 120 frames per minute (2FPS) and then saves those
frames as PNG images on an NFS share with UID=10 and GID=10.
Figure 31: Sample configuration of Video Grabber saving PNG images on NFS share
For this configuration to work user would also have to setup a NFS share (See 4.2.3.1, p.31).
