Video Grabber DGR-1000 User Manual - v. 1.4 (FW 1.9)
Example 5
Video Grabber captures the video signal at a rate of 600 frames per minute (10FPS) and then provides
a H.264 CBR stream with a bitrate limit of 1000kbps and IDR period set to 450.

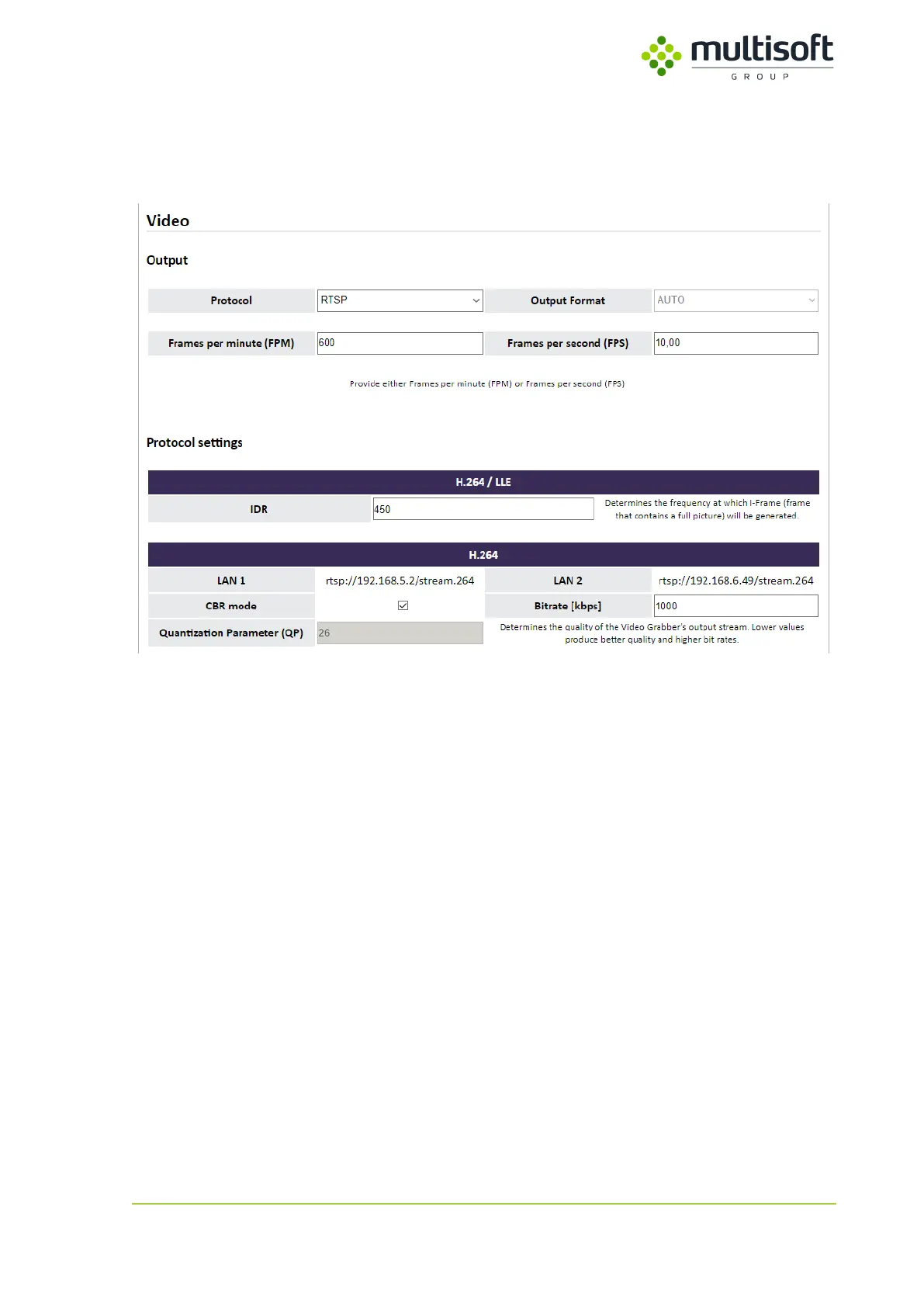

Figure 34: Sample configuration of Video Grabber set to stream captured video signal (H.264 CBR)
To connect to the configured H.264 stream user would have to use one of the RTSP connection strings
that are shown in LAN 1 and LAN 2. In the sample shown above it would be either:
rtsp://192.168.5.2/stream.264
or
rtsp://192.168.6.49/stream.264
