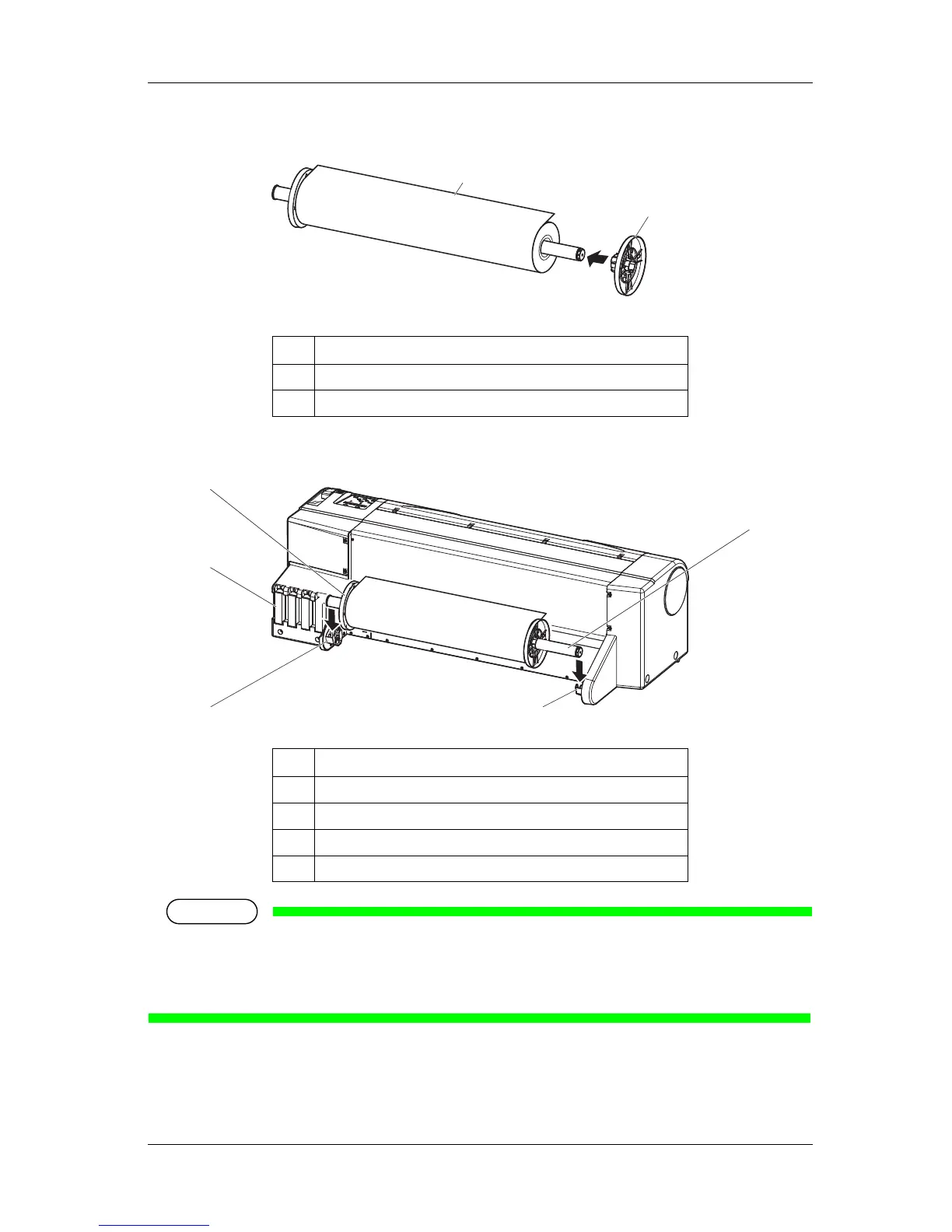

4. Attach the movable flange so that it is firmly attached to the roll media core.
5. Set the scroller to the scroller receiver so that the fixed flange is on the ink cartridge slot side.
NOTE
• The roll media fixing belt provided with the optional scroller prevents the roll media from getting
loosen, when the roll media in the printer is not used.
• Put the belt edge to the roll media, and wind the roll media by rotating it.
No. Name
1
Movable flange
2
Roll media
No. Name
1
Scroller
2
Fixed flange
3
Ink cartridge slot
4
Scroller receiver
2
1
1
2
4 4
3
