Step 2
-- Option A (Recommended)
Insert the two roll holders into the roll media support set then place the roll media directly
between the two roll holders (

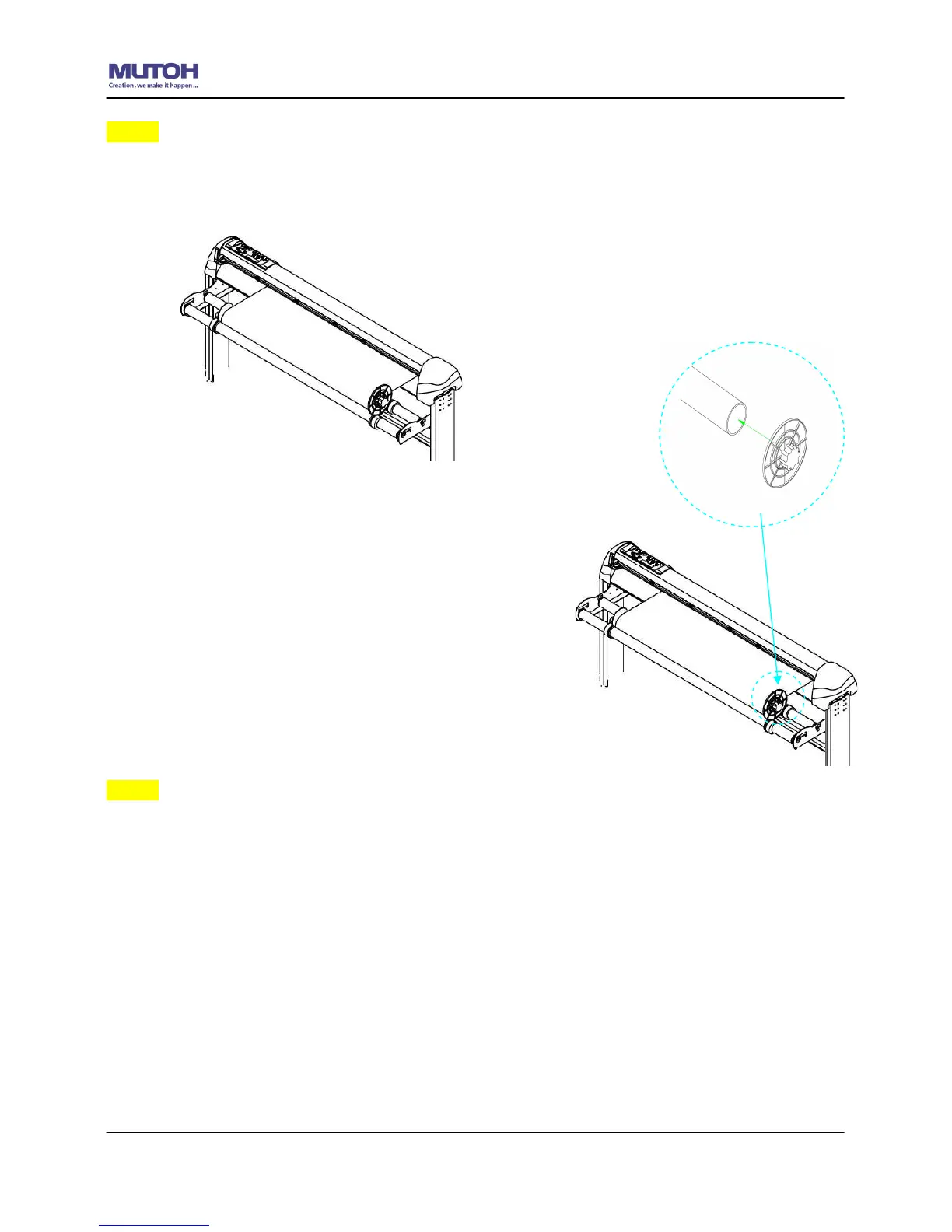

Figure 4-7
).
-- Option B (Use the media flanges)
Insert a roll media flange at the end of each roll
media and tighten the thumbscrew until the roll
media is firmly gripped(see Figure 4-8).
Then put the roll media on the roll holders. Adjust the
position of the roll media ensure that media flanges are
able to run in the grooves of media guide bushes.
(Figure 4-9)
Step 3
Load the media on the platen. Please refer to “4.1.1 Loading the sheet media”. After loading
the roll media, flatten the media on the platen and hold the front edge of the roll media firmly
(Figure 4-10).
Figure 4-7
