Step 4
Turn the roll downward to make an equal tension across the media (Figure 4-11)
Step 5
Move the pinch rollers to the appraise location and
note that the pinch rollers must be positioned above
the grid drums.
Step 6
Push the lever backward to lower down the pinch rollers.
Step 7
Fix roll media guide bushes on the roll holder to secure the roll media.
Step 8
Turn on the power switch, the tool carriage will sizing the media automatically.
Then the cutting plotter is ready to work.
Step 9
Use the reverse steps to remove the media.

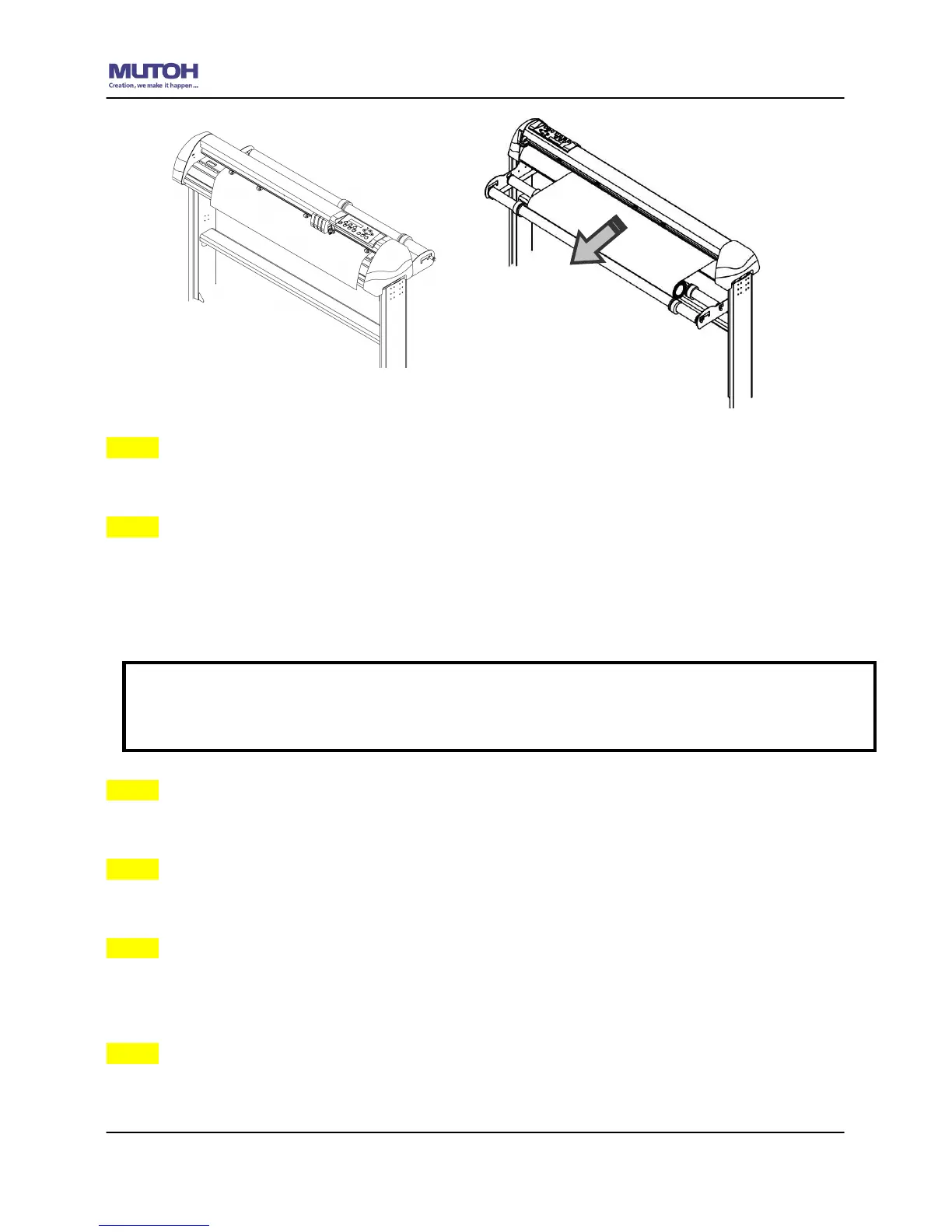

Figure 4-11
Figure 4-10
Note:
Make sure that the media tension is equally distributed from left to right. If the media were not
tightened enough against the platen, it would cause tracking problems!
