N-Tron 7506GX2 User Manual

(Revised 2011-07-21) Page 95 of 158
N-Link – Configuration, Continued…

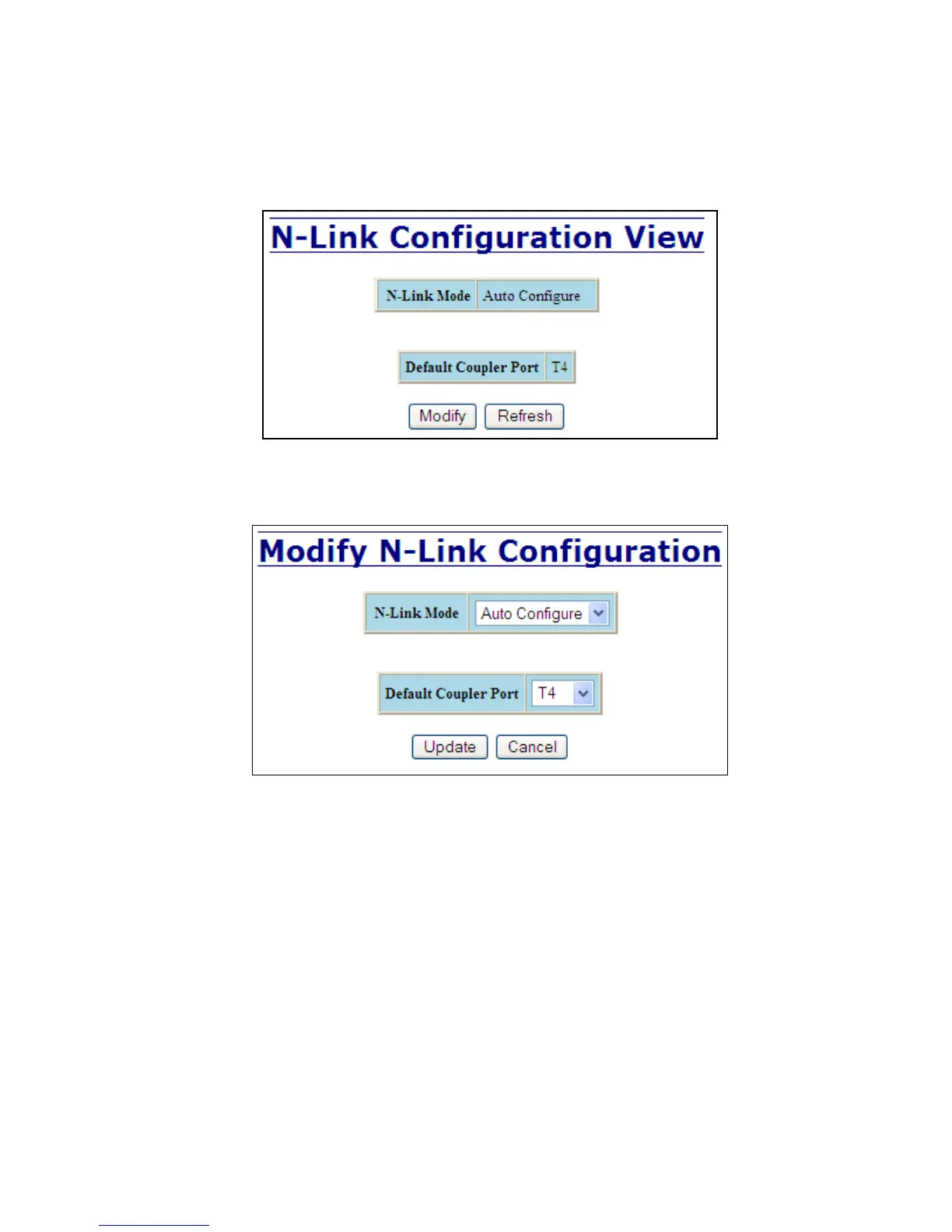

The Configuration tab under the N-Link category will display the configuration settings. By default, N-
Link is in Auto Configure mode and will use T4 as the Default Coupler port.
Following the Modify button on the above example, the administrator will see a list of configurable fields
for the N-Link configuration, as below.
The port configured as the Default Coupler Port will be used as the Standby Coupler port if the switch
detects an N-Link Master and becomes an N-Link Slave.
Once these fields are filled in to meet the needs of the administrator‘s network, the changes may be saved by
clicking the Update button at the bottom of the page.
