(Revised 2011-07-21) Page 34 of 158

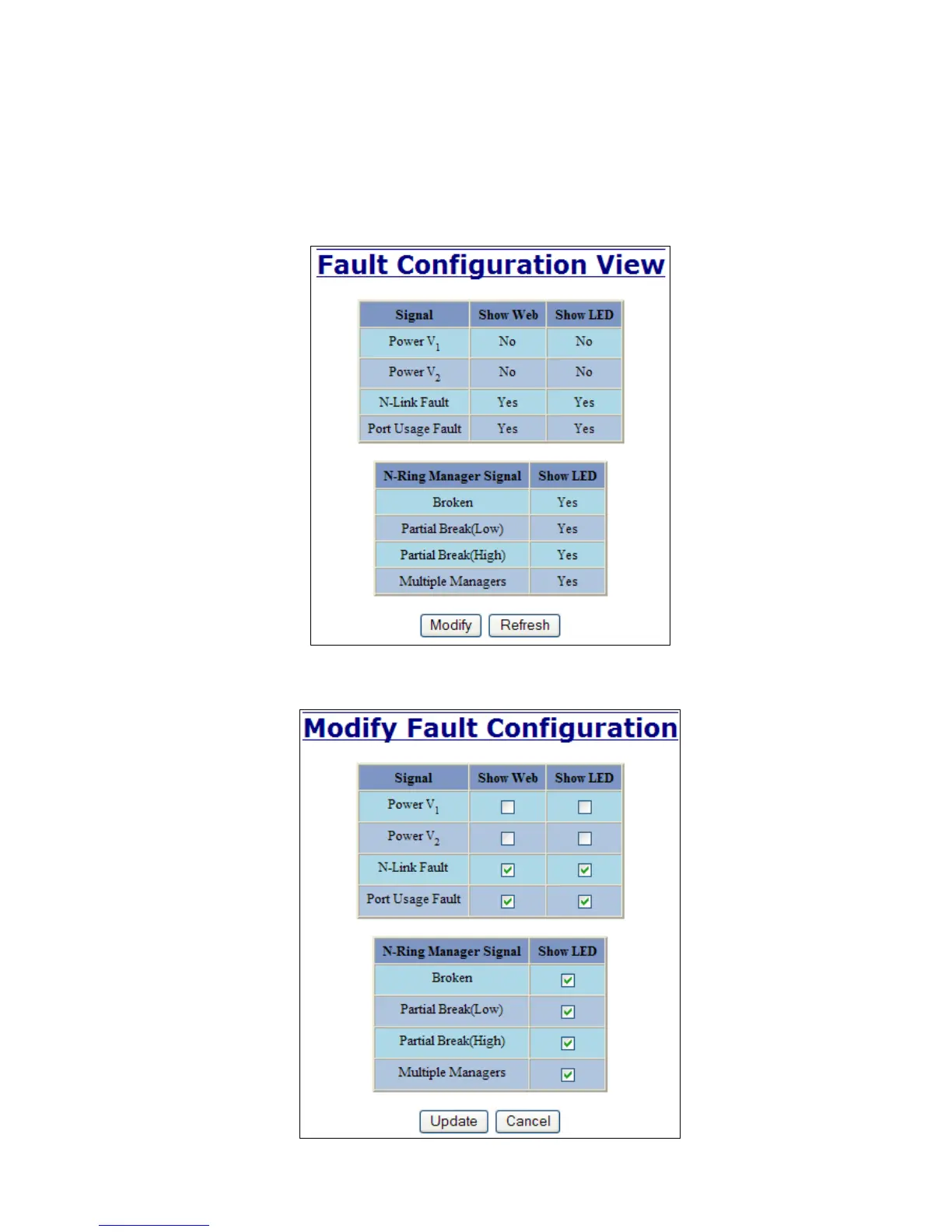

Administration – Fault
The Fault tab under the Administration category provides configurable selections indicating the way to
notify when a Power, N-Link or N-Ring Signal fault occurs. Power signal faults consist of V
1
and V
2.
N-
Link Faults can also be set for notification. The Power and N-Link notifications may consist of any
combination of the options: Show Web and Show LED. N-Ring signal faults consist of: Broken, Partial
Break (Low), Partial Break (High), and Multiple Managers.
Note: V
1
and V
2
Power Faults are disabled in factory defaults.
