(Revised 2011-07-21) Page 54 of 158

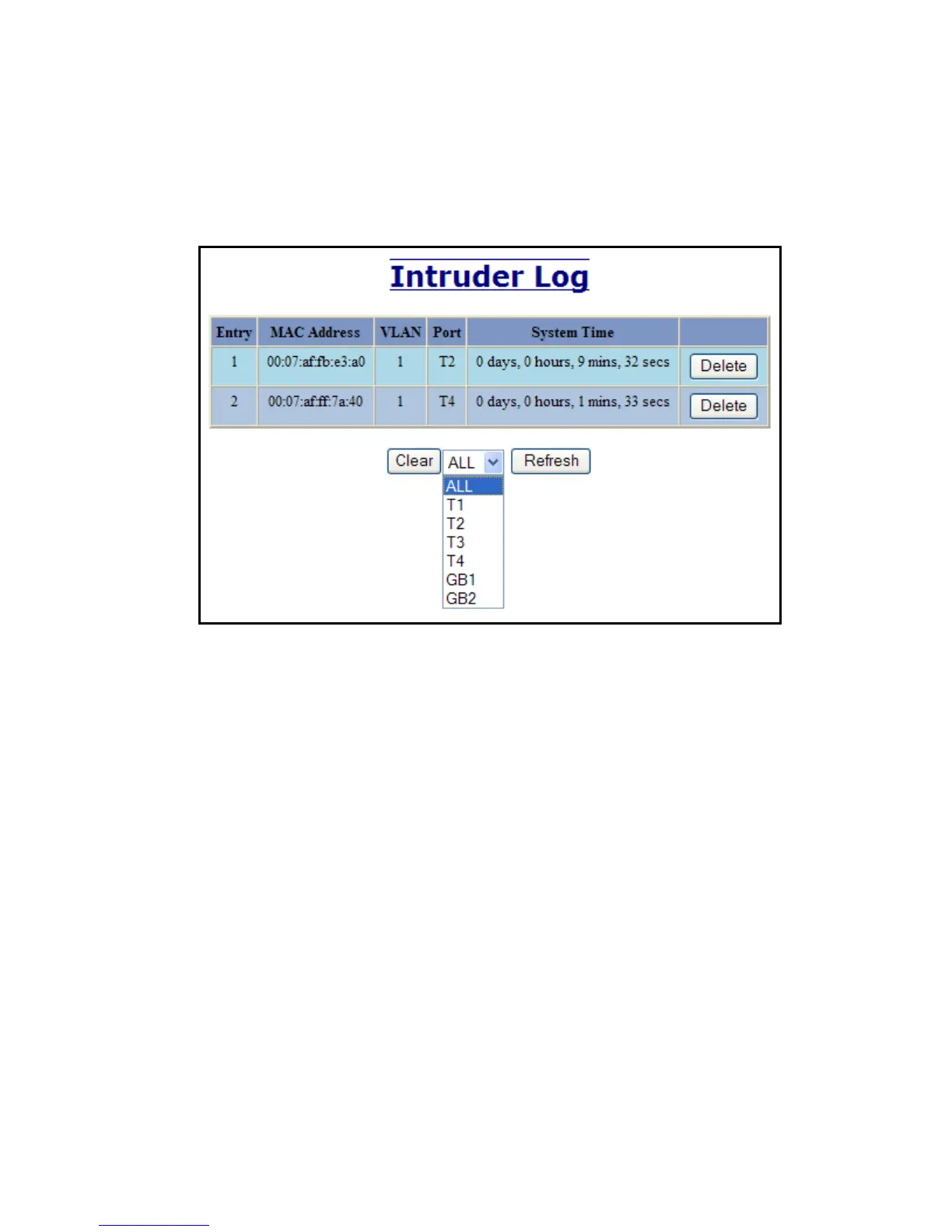

Ports – MAC Security – Intruder Log
The Intruder Log tab displays a list of unauthorized MAC addresses that attempted to access the secured
device. Each intruder entry in the log is unique, and is based on the combination of MAC address, VLAN,
and port. Only the first occurrence of the intruder is listed. The log is ordered by most recent first, based on
the system time. The maximum number of entries is 100. If more than 100 intruders are detected, the
oldest entries are deleted. The log is not saved through a power cycle.
An entry can be individually removed from the log by selecting the associated Delete button. All entries or
entries specific to a port can also be removed from the log by choosing the option in the dropdown list and
then selecting the Clear button.
