N-Tron 7506GX2 - N-Ring - Status

(Revised 2011-07-21) Page 89 of 158
N-Ring – Status
The Status tab under the N-Ring category will display the N-Ring status.

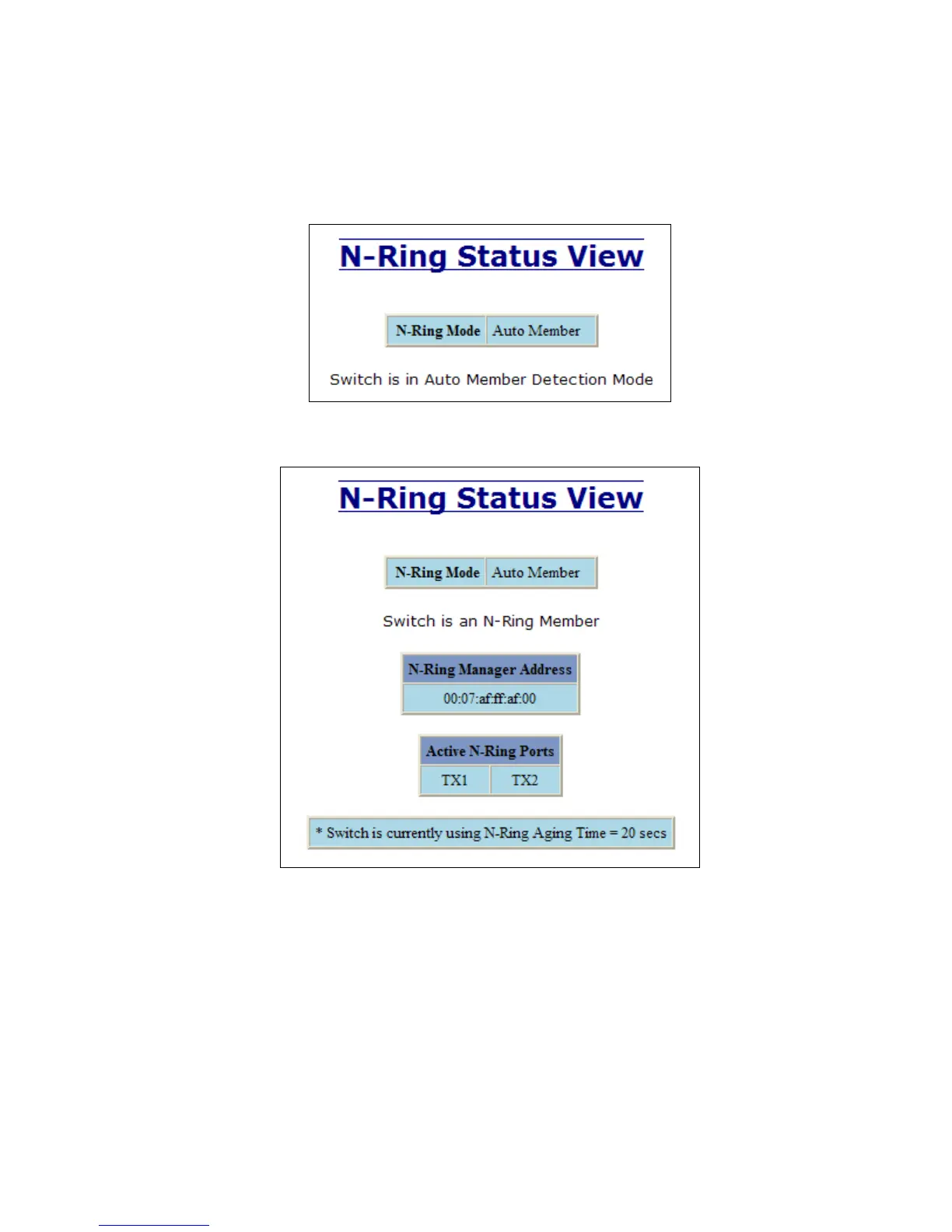

Below is an example of N-Ring Status from a switch in defaults (N-Ring Auto Member) that is not an
N-Ring Manager and has not become an ―Active‖ N-Ring Member:
Below is an example of N-Ring Status from an ―Active‖ N-Ring Member:
