CIP – Status

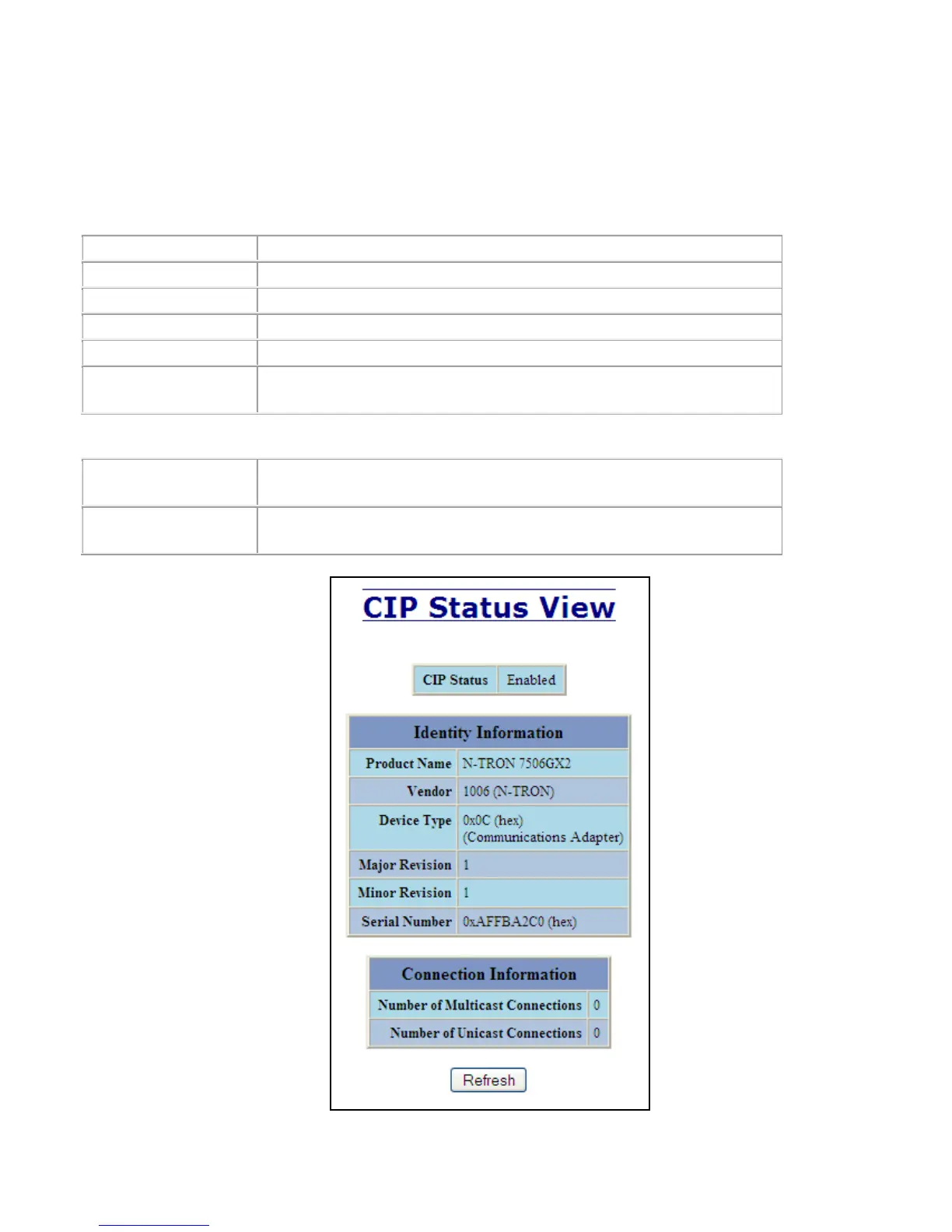

The Status tab under the CIP category will display the CIP status.
The following switch status and partner status information will be shown:
Identity Information:
Product Name:
Switch Model Number.
Vendor:
This is N-Tron's ODVA Ethernet/IP Vendor ID (1006).
Device Type:
The ODVA Device Type is Communications Adapter (= 0x0C hex).
Major Revision:
The Major Revision of the CIP implementation.
Minor Revision:
The Minor Revision of the CIP implementation.
Serial Number (hex):
CIP Serial number, unique across all N-Tron CIP devices. This is the
last 4 octets of the base switch MAC.
Connection Information:
Number of Multicast
Connections:
Current number of CIP Ethernet/IP class 1 (multicast) connections.
Number of Unicast
Connections:
Current number of CIP Ethernet/IP class 3 (unicast) connections.
