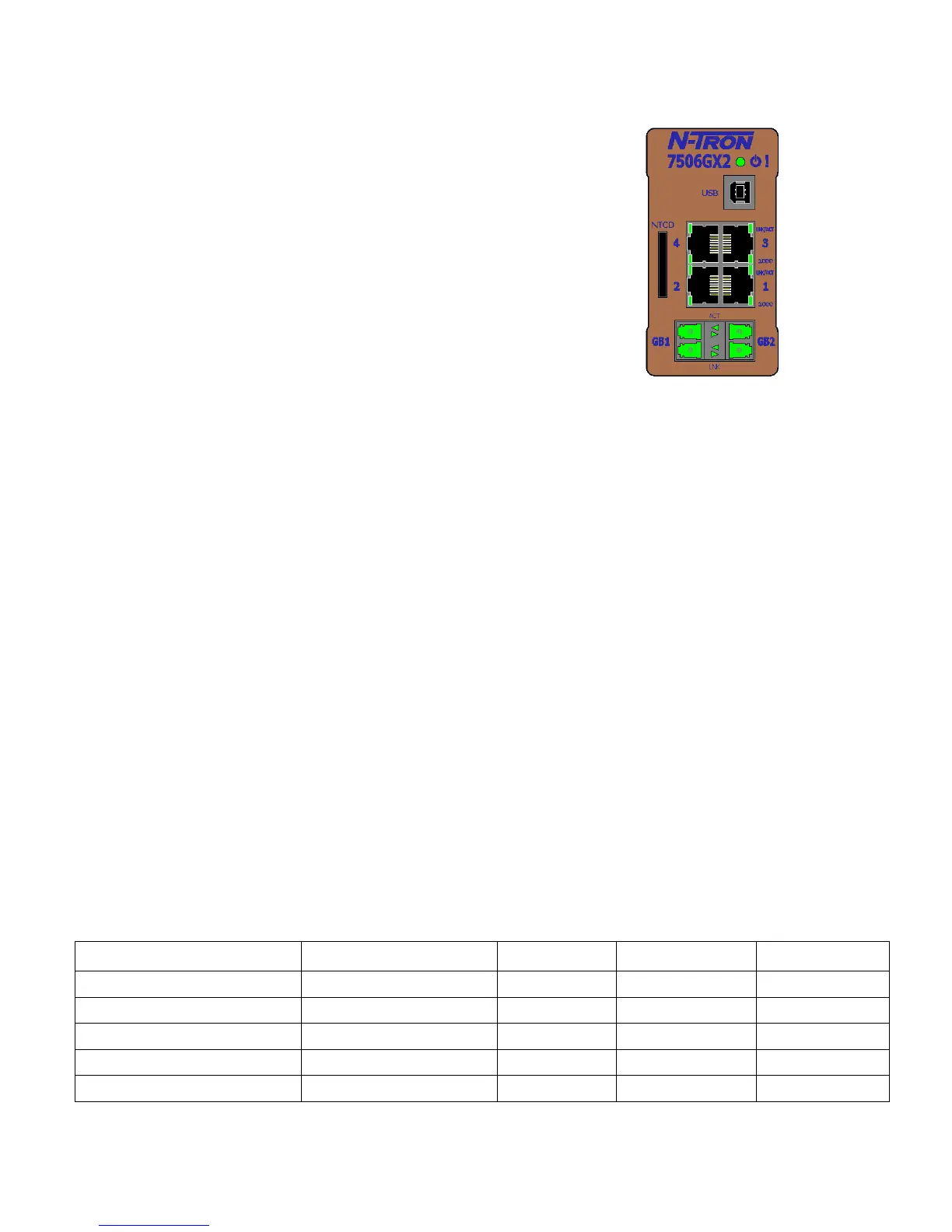

KEY SPECIFICATION
Switch Properties
Number of MAC Addresses: 4,000
Aging Time: Programmable
Latency Type: 1.6 µs
Switching Method: Store & Forward
Physical
Height: 3.75‖ (9.53 cm)
Width: 2.00‖ (5.08 cm)
Depth (incl. DIN mount): 3.87‖ (9.83 cm)
Weight: 1.05 lbs. (0.48 kg)
DIN Rail 35 mm
Electrical
Redundant Input Voltage: 10-49VDC (Regulated)
Input Current (max): 440mA max. @ 24VDC
Input Ripple: Less than 100 mV
N-TRON Power Supply: NTPS-24-1.3 (1.3 Amp@24VDC) (NOTE: Not appropriate for use with
M12, POE, and HV models.)
Environmental
Surrounding Air Temperature: -40°C to 80°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 95%
(Non Condensing)
Operating Altitude 0 to 10,000 ft.
Shock and Vibration
(bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz,Triaxial
Reliability
MTBF: >2 Million Hours
Warranty: 3 years from the date of purchase.
Connectors
10/100/1000BaseT: (4) RJ-45 Copper Ports
Optional SFP Ports:
1000BaseSX: Up to two (2) LC Duplex Gigabit Fiber Ports (optional)
Recommended Wiring Clearance:
Front: 4" (10.16 cm)
Side: 1" (2.54 cm)
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
1000BaseT: >Cat5e Cable
minimum length : 1 meter
maximum length : 100 meters
Gigabit Fiber Transceiver (SFP) Characteristics
Fiber Length
550m* with 50/125 µm
275m @ 62.5/125μm
10km**
40km**
80km**
TX Power Min
-9.5dBm
-9.5dBm
-2dBm
0dBm
RX Sensitivity Max
-17dBm
-20dBm
-22dBm
-24dBm
Wavelength
850nm
1310nm
1310nm
1550nm
Assumed Fiber Loss
3.5 to 3.75 dB/km
0.45 dB/km
0.35 dB/km
0.25 dB/km
Laser Type
VCSEL
FP
DFB
DFB
*SX Fiber Optic Cable
** LX Fiber Optic Cable

N-Tron 7506GX2 Specifications

General

Brand	N-Tron
Model	7506GX2
Category	Switch
Language	English
