7.3 Attachment of Communication Cassette
This section explains about the attachment procedure of optional communication
cassette.
7.3.1 Attachment Procedure
1. Insert a screwdriver under the cover to remove it.

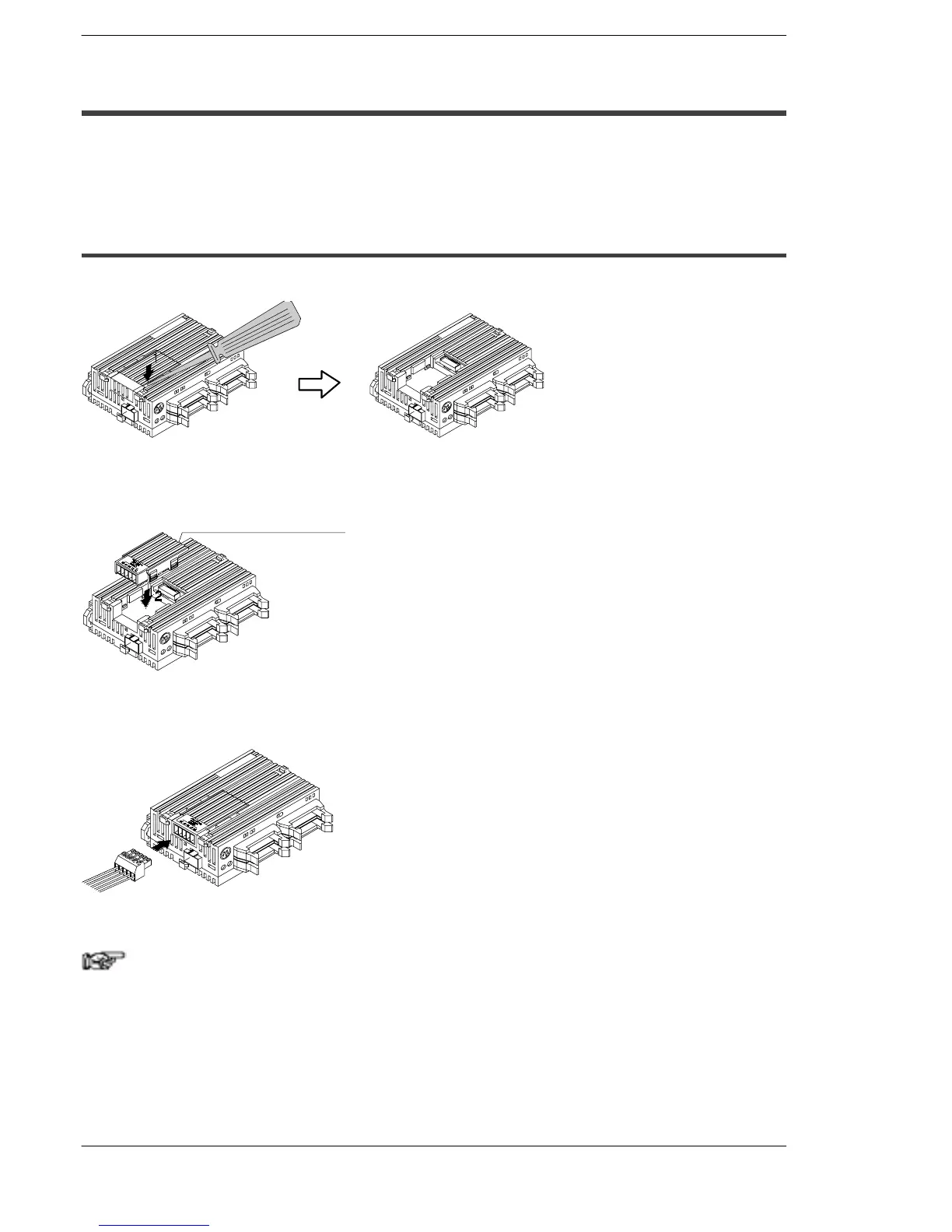

Figure 133: FPΣ Communication cassette attachment procedure 1
2. Install the communication cassette.
Communication cassette
Figure 134: FPΣ Communication cassette attachment procedure 2
3. Plug in the communication connector.
Figure 135: FPΣ Communication cassette attachment procedure 3
Note
Turn off the power supply to the control unit before installing the
communication cassette.
